7.5.2.2 Configurations with up to 16 HDDs/SSDs

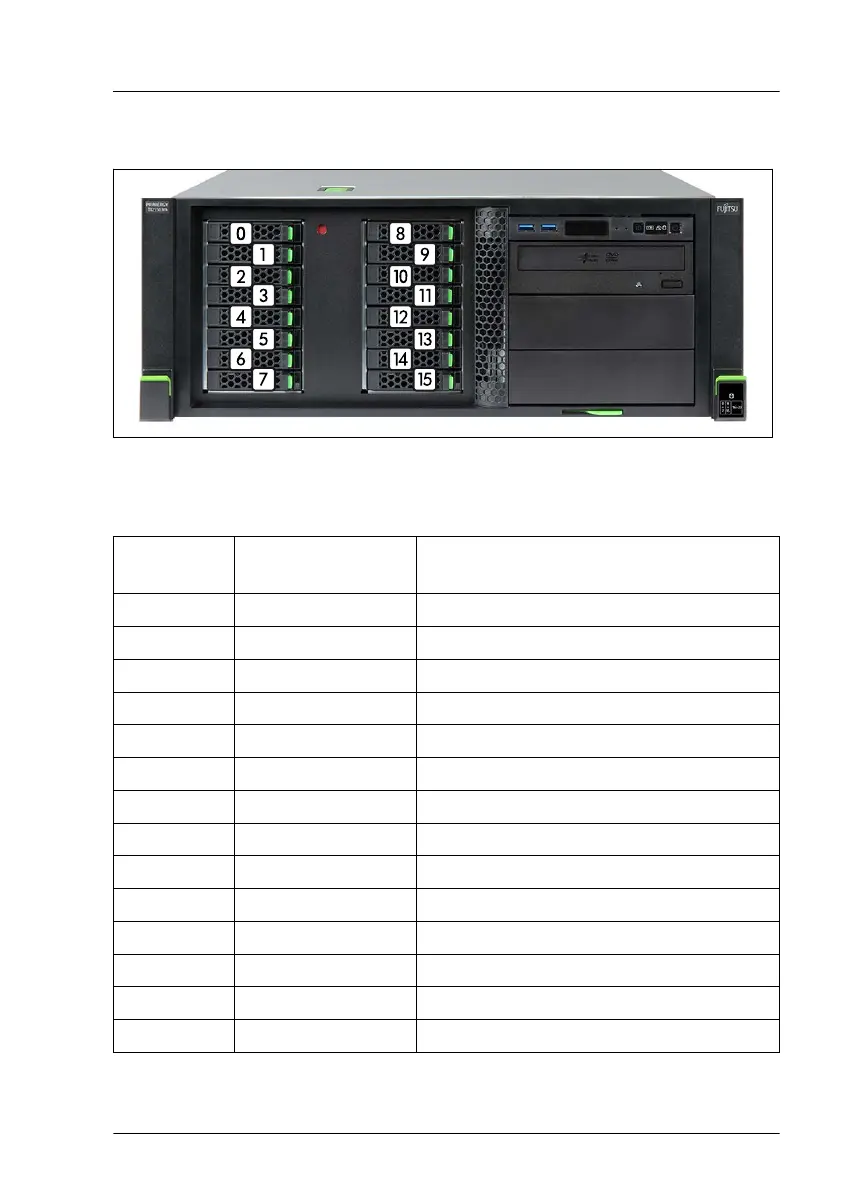

Figure 116: Configuration with up to 16 2.5-inch HDDs/SSDs - SAS expander/one controller
With SAS expander board and one SAS controller
Position Logical drive
number
ServerView RAID Manager display
name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
[8] 8 Vendor Product (8)
[9] 9 Vendor Product (9)
[10] 10 Vendor Product (10)
[11] 11 Vendor Product (11)
[12] 12 Vendor Product (12)
[13] 13 Vendor Product (13)
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 209
