Position Logical drive
number
ServerView RAID Manager display
name
[14] 14 Vendor Product (14)
[15] 15 Vendor Product (15)

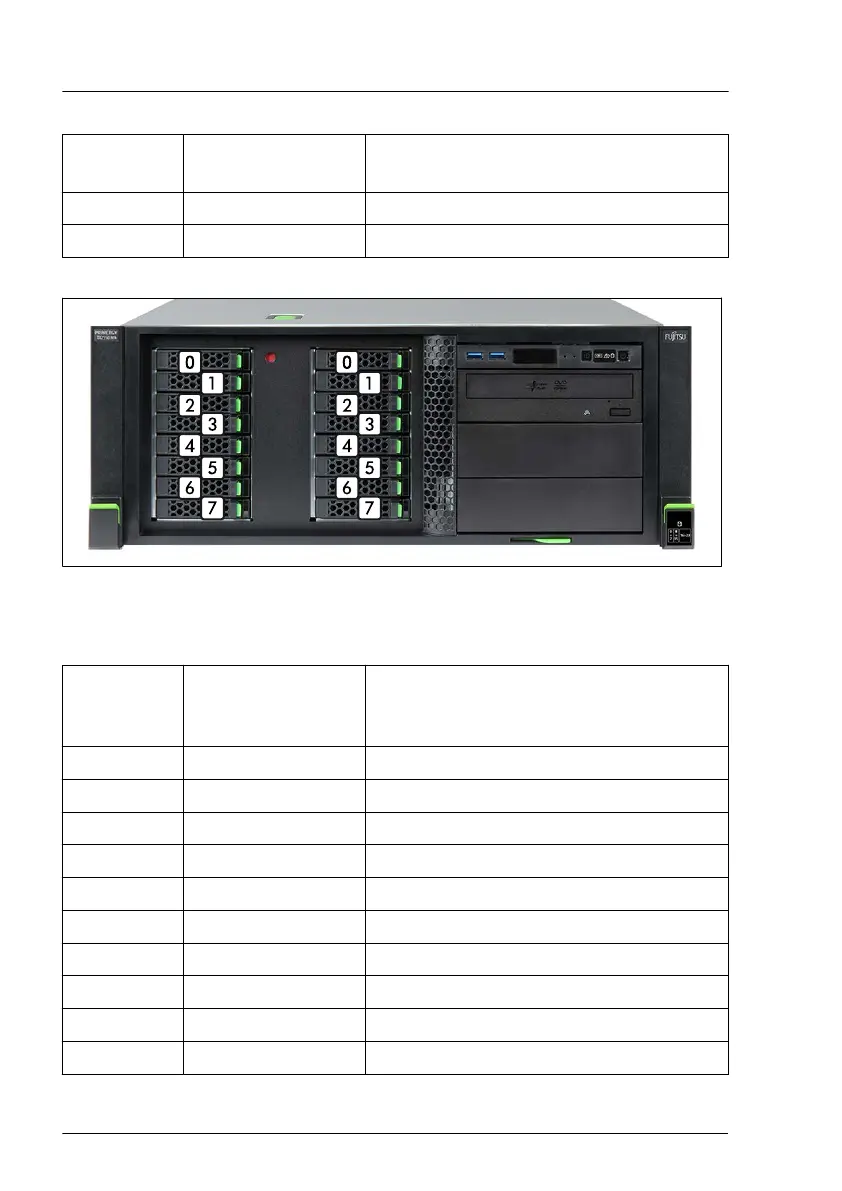

Figure 117: Configuration with up to 16 2.5-inch HDDs/SSDs - two controllers
With two SAS controllers
Position Logical drive
number
ServerView RAID Manager display
name
(Controller ID: Device ID)
[0] 0 Vendor Product (0:0)
[1] 1 Vendor Product (0:1)
[2] 2 Vendor Product (0:2)
[3] 3 Vendor Product (0:3)
[4] 4 Vendor Product (0:4)
[5] 5 Vendor Product (0:5)
[6] 6 Vendor Product (0:6)
[7] 7 Vendor Product (0:7)
[0] 0 Vendor Product (1:0)
[1] 1 Vendor Product (1:1)
Hard disk drive (HDD) / solid state disk (SSD)
