4.4.3.3 Removing the accessible drive bay cover

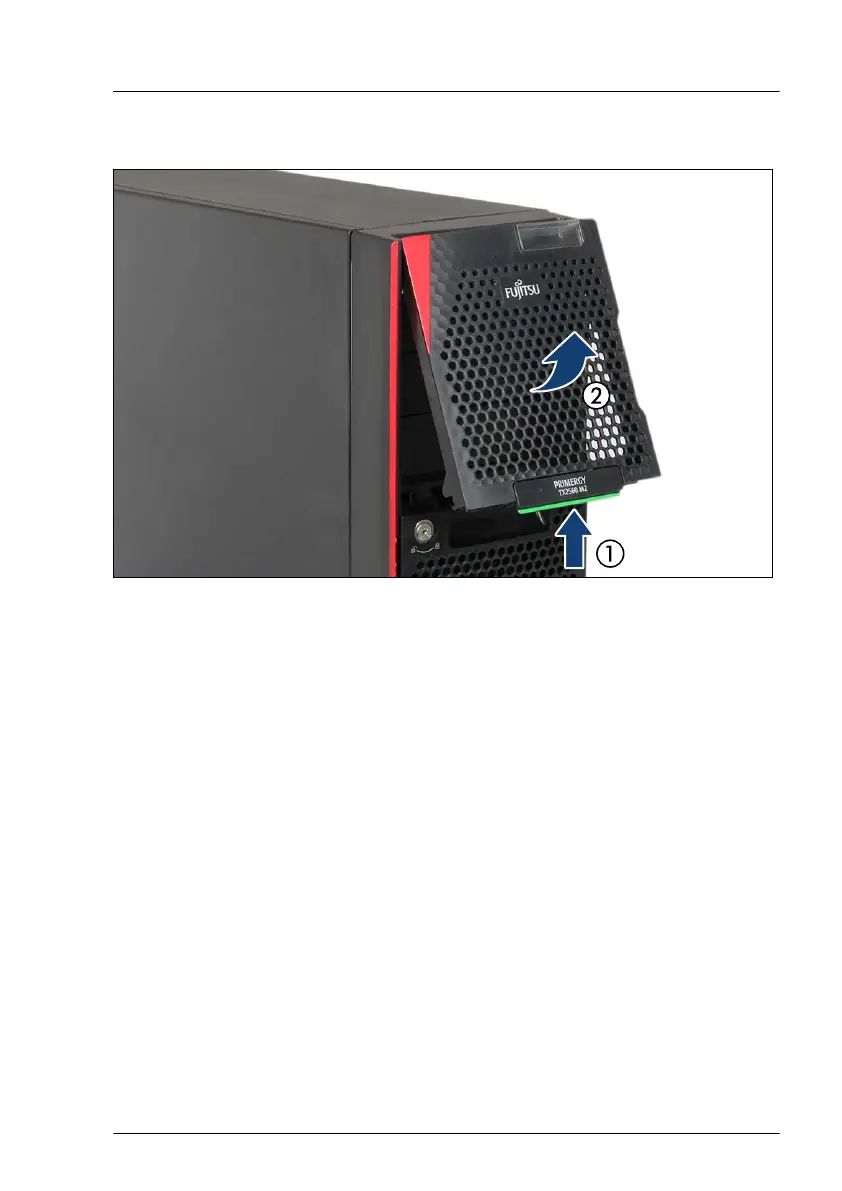

Figure 14: Removing the accessible drive bay cover
▶
While pressing up on the green locking bar (1), fold out the accessible drive
bay cover in the direction of the arrow (2).
▶
Remove the accessible drive bay cover.
