Fujitsu PRIMERGY TX2550 M5 - Data 3 X 4 X 3.5 + 2 Xnhp 1 Con Exp

23TX2550 M5
Data 3x 4x 3.5" + 2xNHp 1Con Exp

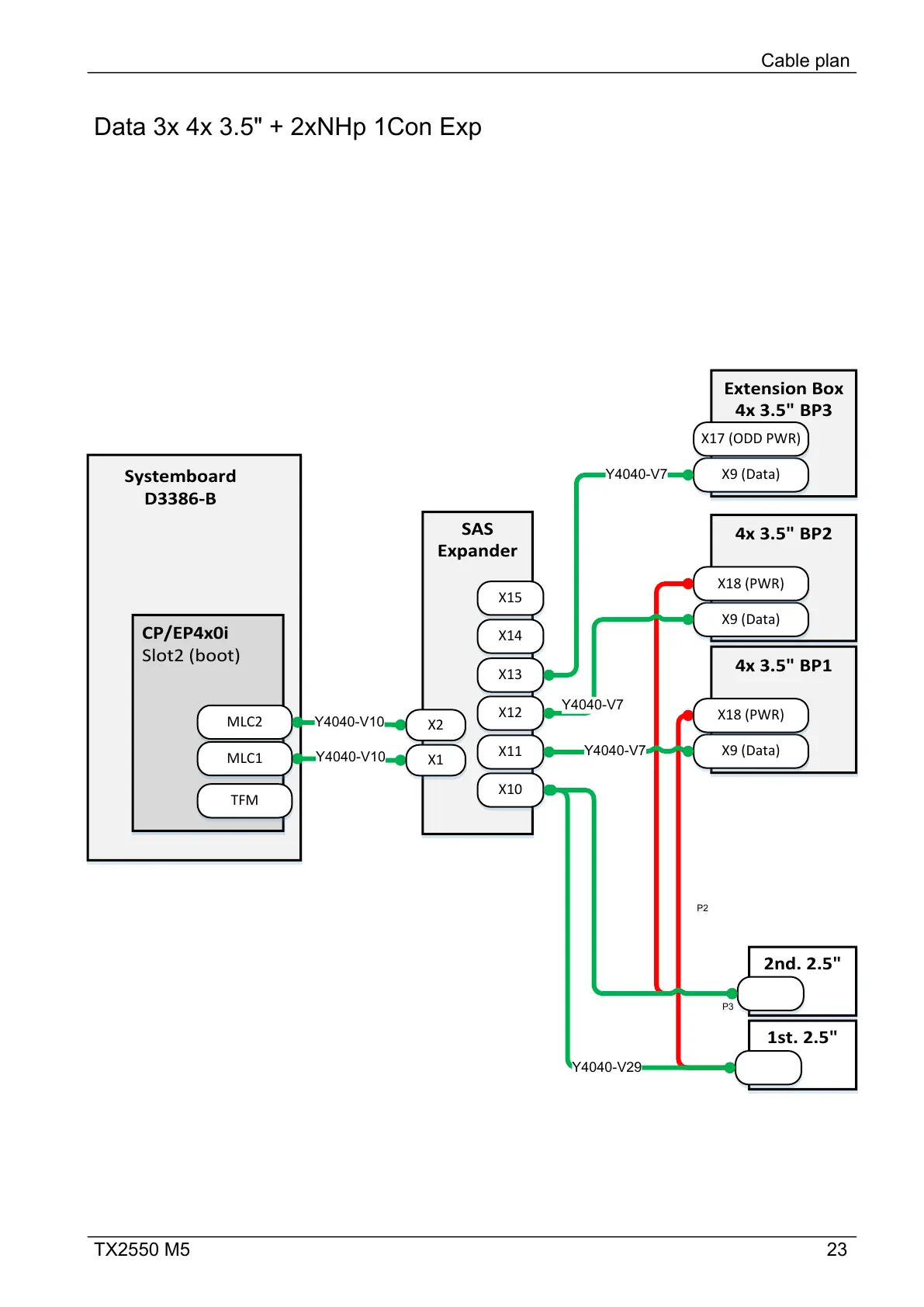

Cable plan
2nd. 2.5"
Systemboard
D3386-B
X9 (Data)
X18 (PWR)
4x 3.5" BP1
X9 (Data)
X18 (PWR)
4x 3.5" BP2
Y4040-V10
CP/EP4x0i
Slot2 (boot)
MLC2
MLC1
TFM
Y4040-V10
SAS
Expander
X1
X2
X10
X11
X12
X13
X14
X15
X9 (Data)
X17 (ODD PWR)
Extension Box
4x 3.5" BP3
Y4040-V7
1st. 2.5"
P3
P3
Y4040-V29
Y4040-V7
Y4040-V7
P2
P2
