4.5.4.2 Installing the HDD bay cover

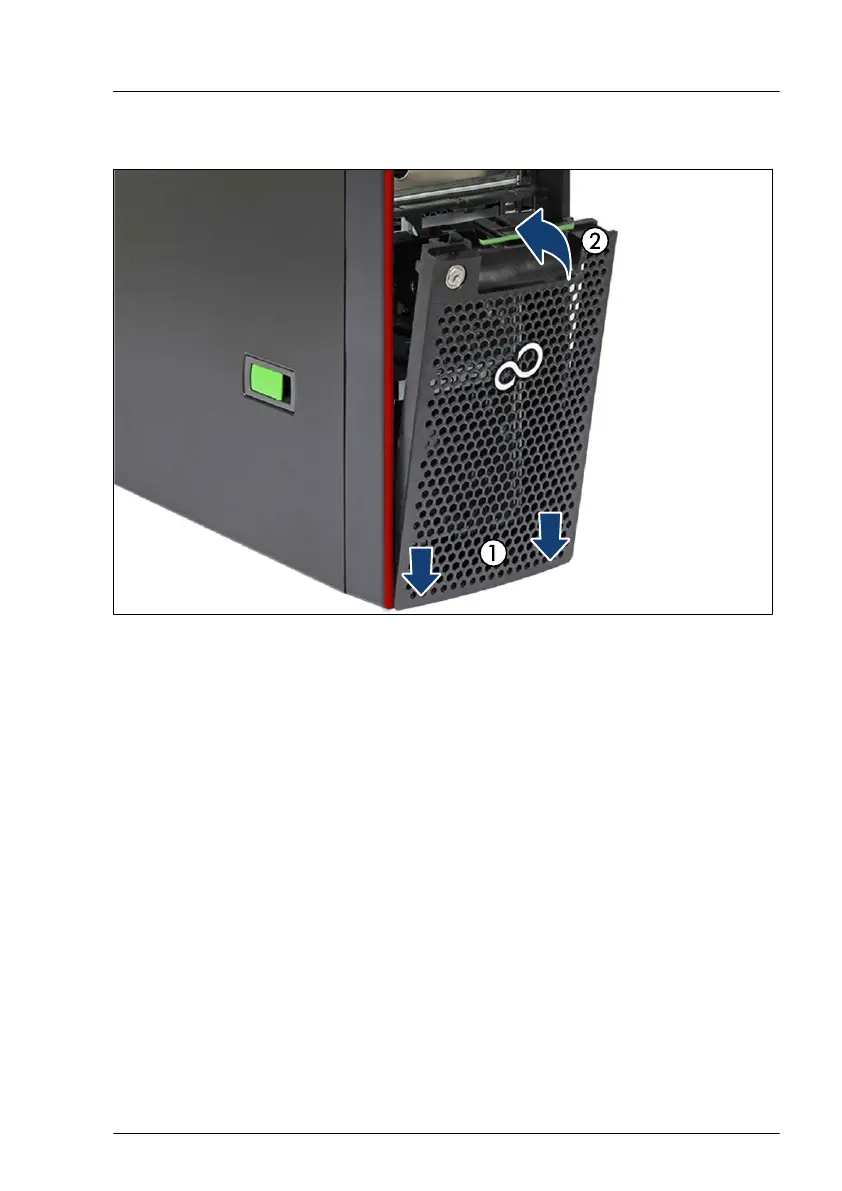

Figure 28: Installing the HDD bay cover
Insert the HDD bay cover with the lower side into the front cover as shown
(1).
Fold in the HDD bay cover until it locks in place (2).
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 77
