Fujitsu PRIMERGY TX2550 M5 - Configuration with up to Four HDD Modules; Overview of Configurations

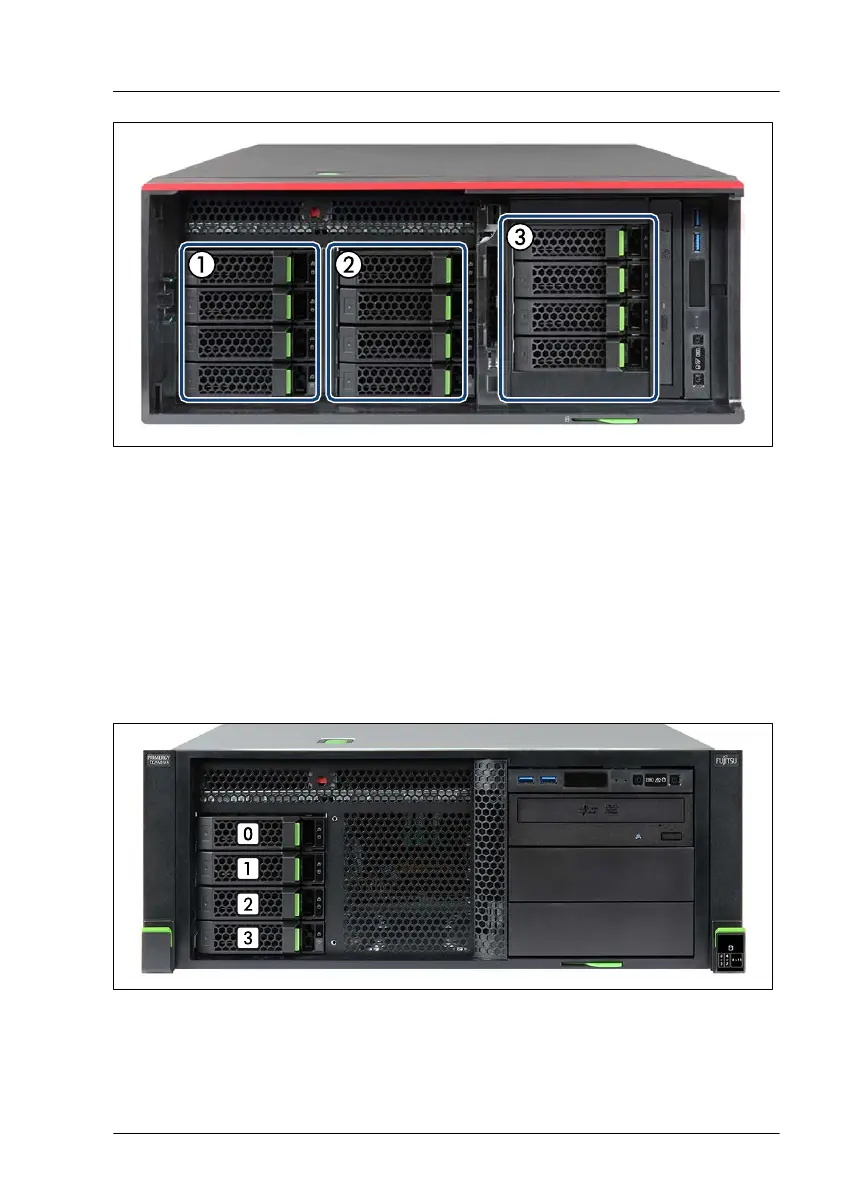

Figure 85: 3.5-inch HDD SAS backplanes - floorstand model
1 SAS backplane 1 in HDD cage 1 (basic
configuration)
2 SAS backplane 2 in HDD cage 2
(optional)
3
SAS backplane 3 in optional 4x 3.5-
inch HDD extension box
7.4.3 Overview of configurations
7.4.3.1
Configuration with up to four HDD modules
Figure 86: Configuration with up to four 3.5-inch HDDs
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 173
