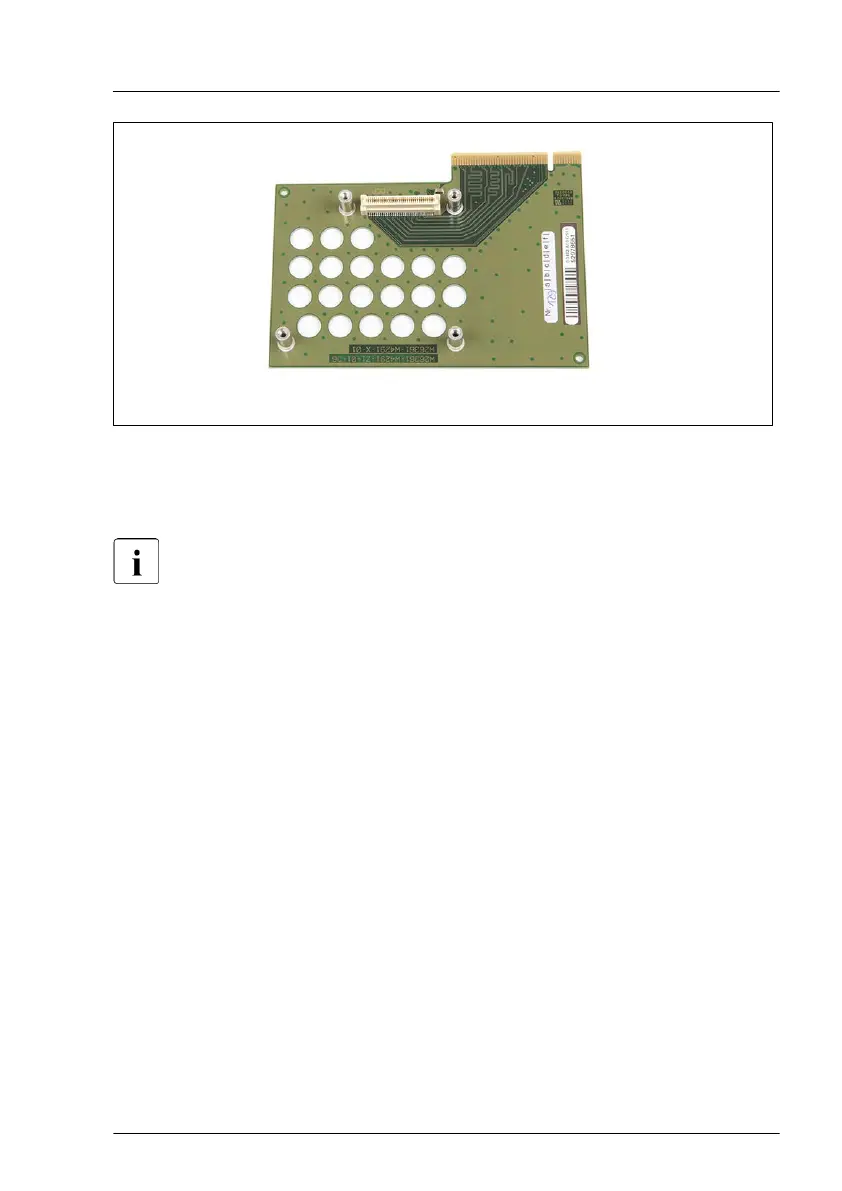

Figure 215: OCP carrier with bolts
Some OCP modules can be equipped with SFP modules, see "Handling SFP+
transceiver modules" on page 330
.
When upgrading the server with an OCP module, the onboard LAN
connectors are shifted from LAN connector 1/2 to LAN connector 3/4.
Preliminary steps
▶
"Shutting down the server" on page 49
.
▶
"Disconnecting the power cord" on page 50.
▶
"Getting access to the component" on page 51.
▶
If applicable, remove the riser module, see "Removing the riser module" on
page 86.
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 339
