Insert the key into the lock on the HDD bay cover (1).
▶
T
urn the key counterclockwise (2) to lock the front and side covers.
▶
Remove the key from the server front.

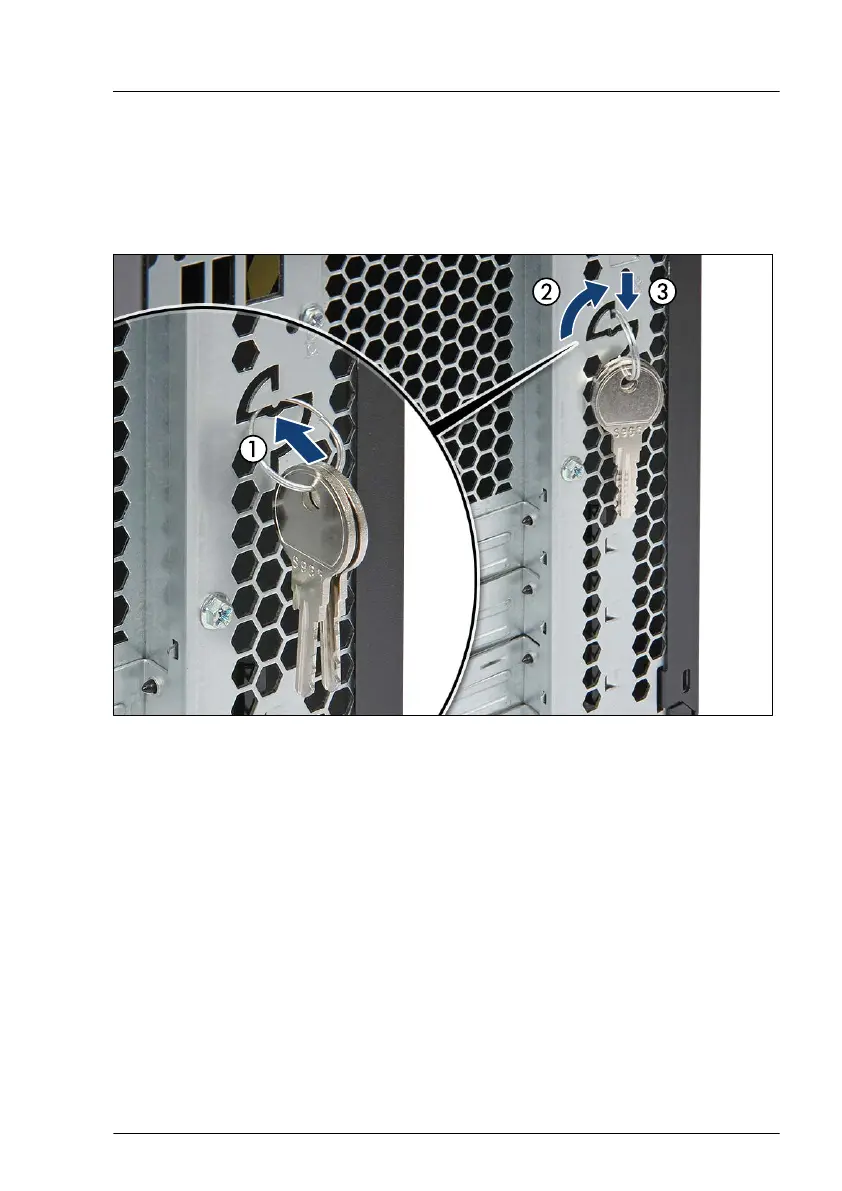

Figure 33: Storing the key ring
▶
Insert the keychain into the slot on the server rear (1).
▶
T
urn the key ring clockwise by 90 degrees (2) until it latches in place as
shown (3).
