Installing a 2.5-inch HDD/SSD in a 3.5-inch installation frame

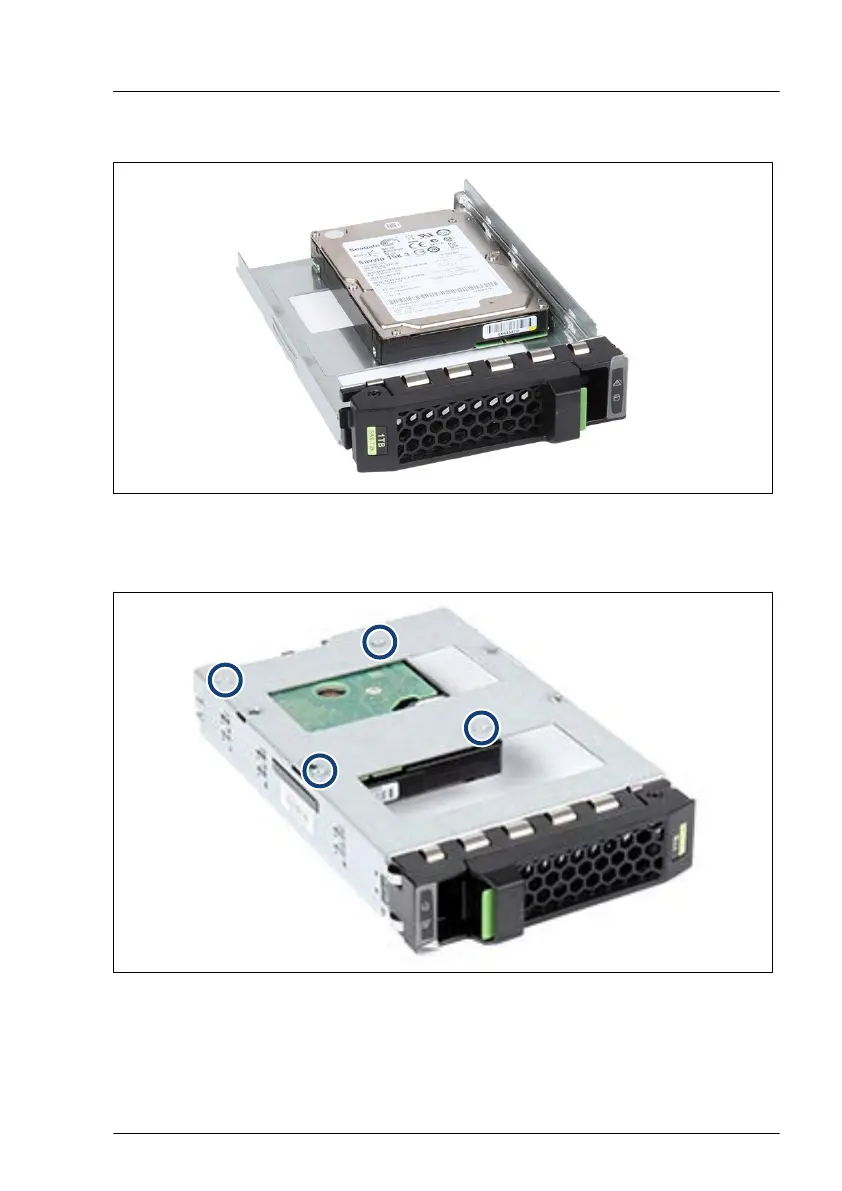

Figure 80: Installing the 2.5-inch HDD/SSD in the 3.5-inch installation frame (A)
▶
Lay the 2.5-inch HDD/SSD into the 3.5-inch installation frame as shown.
Figure 81: Installing the 2.5-inch HDD/SSD in the 3.5-inch installation frame (B)
▶
Fasten the 2.5-inch HDD/SSD with four screws.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 169
