Rack model

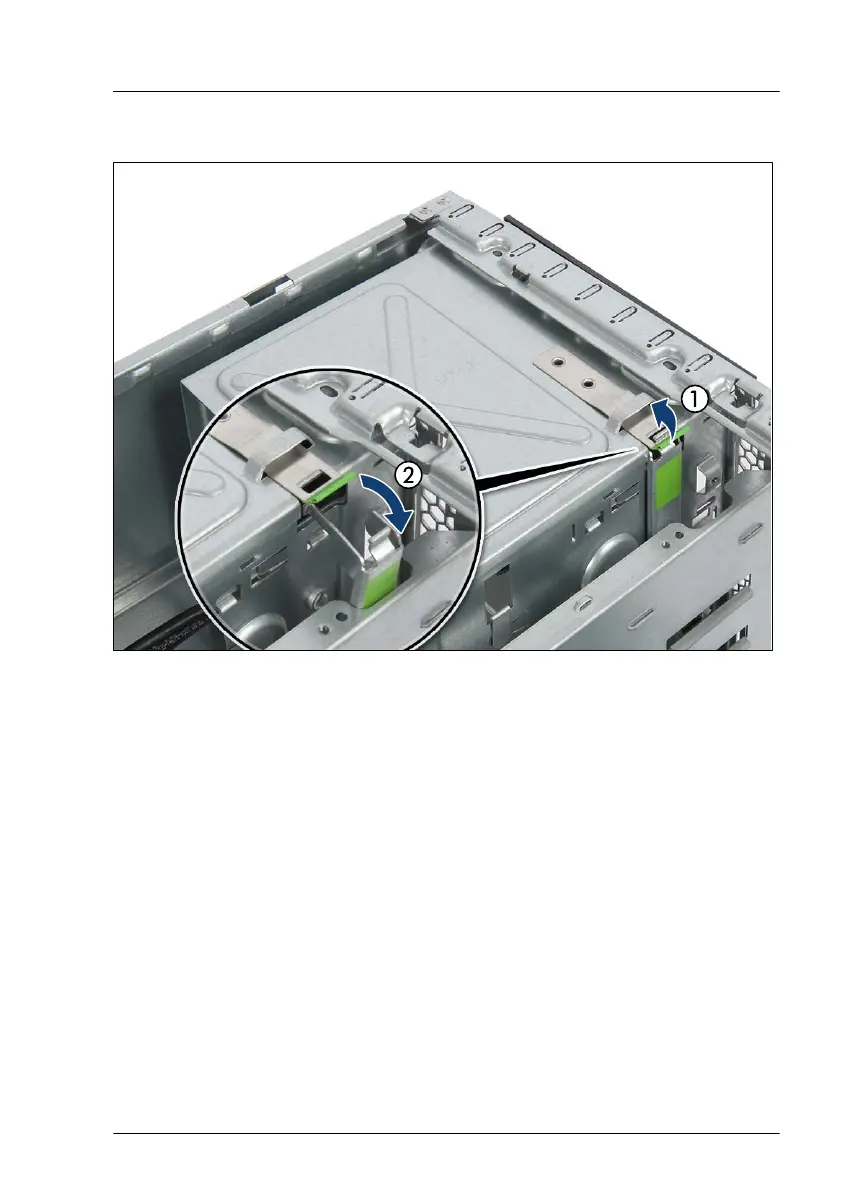

Figure 50: Opening the accessible drive locking bar (rack model)
▶
Pull up the locking latch to disengage the accessible drive locking bar (1).
▶
Fold up the accessible drive locking bar (2).
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 97
