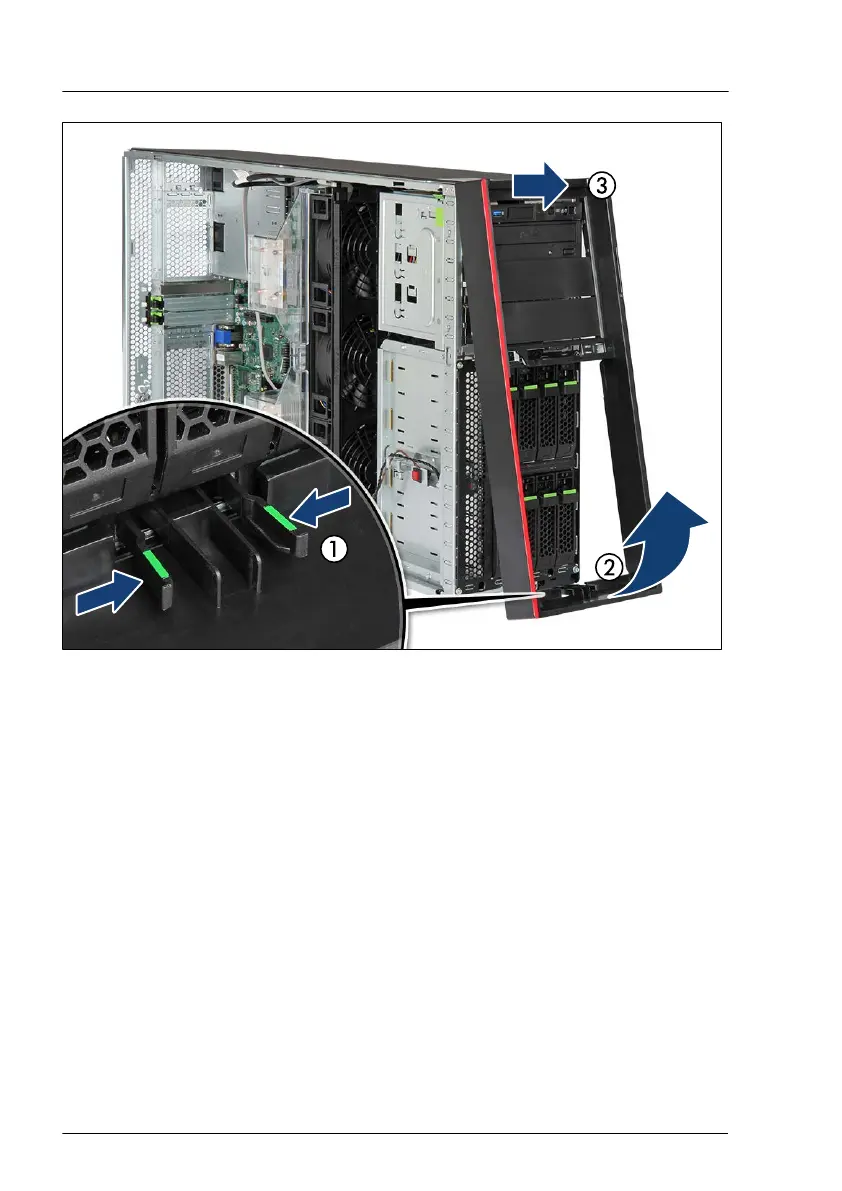

Figure 17: Removing the front cover (floorstand model)
▶
Press the locking clips to disengage the front cover (1, see close-up) while
slightly pulling out.
▶
Carefully fold out the bottom end of the front cover (2).
▶
Unhook and remove the front cover (3).
Basic hardware procedures
66 Upgrade and Maintenance Manual TX2550 M5
