Fujitsu PRIMERGY TX2550 M5 Upgrade And Maintenance Manual

1 2 3 4 4+1 4+2 4+3 8 9 M.2 SSD1 M.2 SSD2
CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU1 CPU2 CPU2 CPU1 CPU1
n n n n y y y n n n n
1 2 3 4 4+1 4+2 4+3 8 9 M.2 SSD1 M.2 SSD2
- - - - - - - - - 1 2
- - - - - - - - - 1 2
- - - - - - - - - 1 2
- - - - - - - - - 1 2
- 1 - - - - - - - - -
- - 3 - - - - 2 1 - -
- - - - - - - - - - -
- - - 1 - - - - - - -
- - 4 1 - - - 2 3 - -
- - - 1 - - - 2 3 - -
- - - - - - - 1 2 - -
- - - 3 - - - 1 2 - -
- - - 3 - - - 1 2 - -
- - - 3 - - - 1 2 - -
- 1 - - - - - - - - -
2 1 - - - - - - - - -
2 1 - - - - - - - - -
2 1 - - - - - - - - -
2 1 - - - - - - - - -
2 1 - - - - - - - - -
2 1 - - - - - - - - -
2 - 1 3 - - - 4 - - -
2 1 - - - - - - - - -
2 - 1 3 - - - 4 - - -
1 - 2 3 - - - - - - -
1 - 2 3 6 7 - 4 5 - -
1 - 2 3 6 7 - 4 5 - -
1 - 2 3 6 7 - 4 5 - -
1 - 2 3 6 7 - 4 5 - -
1 - 2 3 6 7 - 4 5 - -
1 - 2 3 6 7 - 4 5 - -

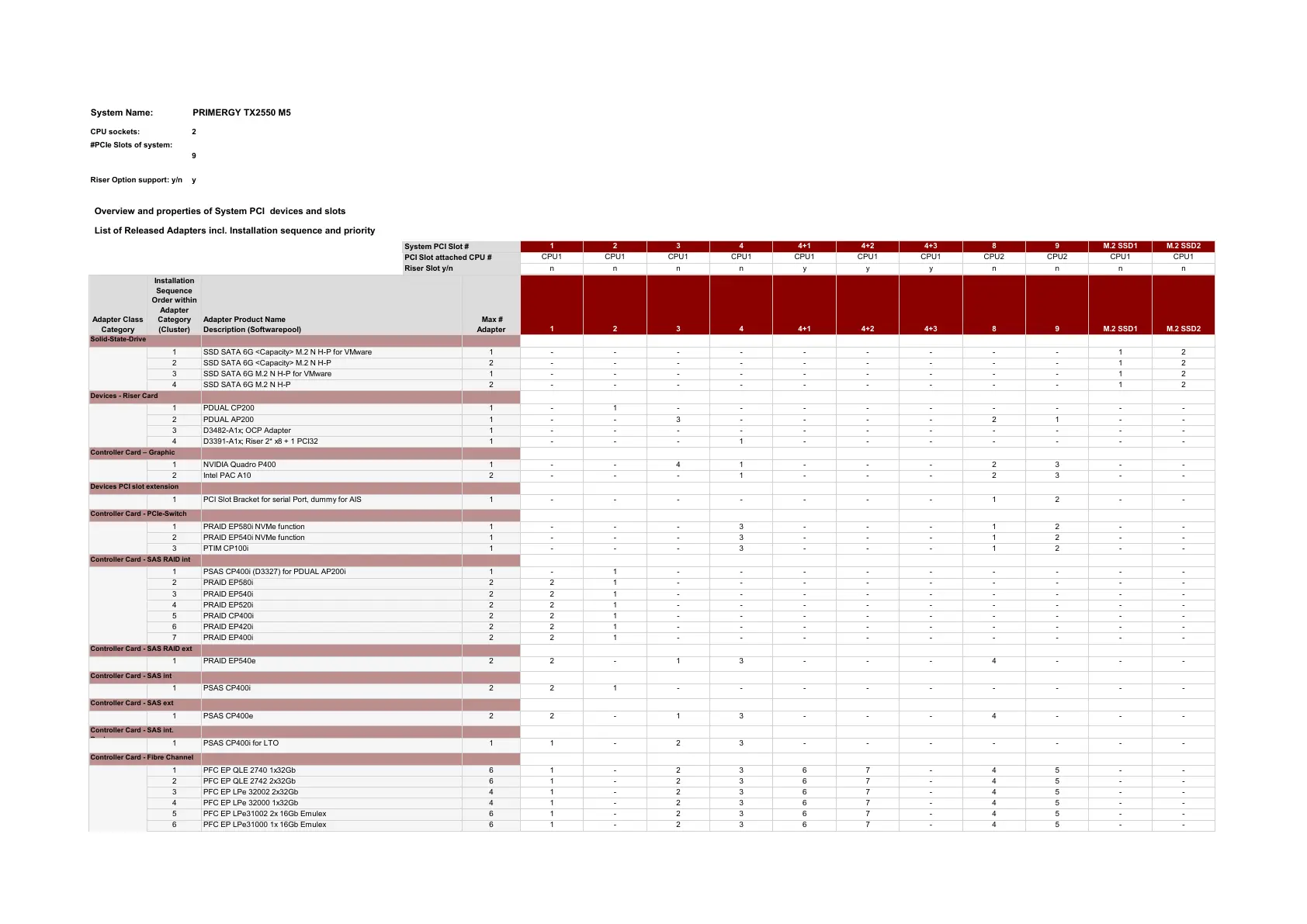

List of Released Adapters incl. Installation sequence and priority
System PCI Slot #
#PCIe Slots of system:
9
Riser Option support: y/n
y
Overview and properties of System PCI devices and slots
System Name:
PRIMERGY TX2550 M5
CPU sockets:
2
Solid-State-Drive
Adapter Class
Category
Adapter
Installation
Sequence
Order within
Adapter
Category
(Cluster)
Adapter Product Name
Description (Softwarepool)
Max #
Adapter
Riser Slot y/n
PCI Slot attached CPU #
3
SSD SATA 6G M.2 N H-P for VMware
1
2
SSD SATA 6G <Capacity> M.2 N H-P
2
1
SSD SATA 6G <Capacity> M.2 N H-P for VMware
1
1
PDUAL CP200
1
Devices - Riser Card
4
SSD SATA 6G M.2 N H-P
2
4
D3391-A1x; Riser 2* x8 + 1 PCI32
1
3
D3482-A1x; OCP Adapter
1
2
PDUAL AP200
1
2
Intel PAC A10
2
1
NVIDIA Quadro P400
1
Controller Card – Graphic
Controller Card - PCIe-Switch
1
PCI Slot Bracket for serial Port, dummy for AIS
1
Devices PCI slot extension
Controller Card - SAS RAID int
3
PTIM CP100i
1
2
PRAID EP540i NVMe function
1
1
PRAID EP580i NVMe function
1
3
PRAID EP540i
2
2
PRAID EP580i
2
1
PSAS CP400i (D3327) for PDUAL AP200i
1
6
PRAID EP420i
2
5
PRAID CP400i
2
4
PRAID EP520i
2
1
PRAID EP540e
2
Controller Card - SAS RAID ext
7
PRAID EP400i
2
Controller Card - SAS ext
1
PSAS CP400i
2
Controller Card - SAS int
1
PSAS CP400i for LTO
1
Controller Card - SAS int.
Backup
1
PSAS CP400e
2
2
PFC EP QLE 2742 2x32Gb
6
1
PFC EP QLE 2740 1x32Gb
6
Controller Card - Fibre Channel
5
PFC EP LPe31002 2x 16Gb Emulex
6
4
PFC EP LPe 32000 1x32Gb
4
3
PFC EP LPe 32002 2x32Gb
4
6
PFC EP LPe31000 1x 16Gb Emulex
6

Fujitsu PRIMERGY TX2550 M5 Specifications

General

Tcase	78 °C
Scalability	2S
Processor cache	13.75 MB
Processor cores	10
Processor model	4210
System bus rate	- GT/s
Processor socket	LGA 3647 (Socket P)
Processor threads	20
Processor codename	Cascade Lake
Execute Disable Bit	Yes
Processor frequency	2.2 GHz
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	76.0 x 56.5 mm
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX-512
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Maximum number of PCI Express lanes	48
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Maximum internal memory supported by processor	1024 GB
Memory slots	12
Internal memory	16 GB
Memory clock speed	2933 MHz
Maximum internal memory	1500 GB
HDD size	2.5 \
RAID levels	0, 1, 5, 6, 10, 50, 60
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Optical drive type	No
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs supported	8
Chassis type	Tower
Product color	Black, Red
Operating system installed	-
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Storage Server 2012 R2 Standard VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 Red Hat Enterprise Linux
Power supply	800 W
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, VCCI, KN32, KN35, CCC, C-Tick
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
PCI Express slots version	3.0
On-board graphics card model	Not available
Processor ARK ID	193384

Weight and Dimensions

Depth	177 mm
Width	448 mm
Height	736 mm
