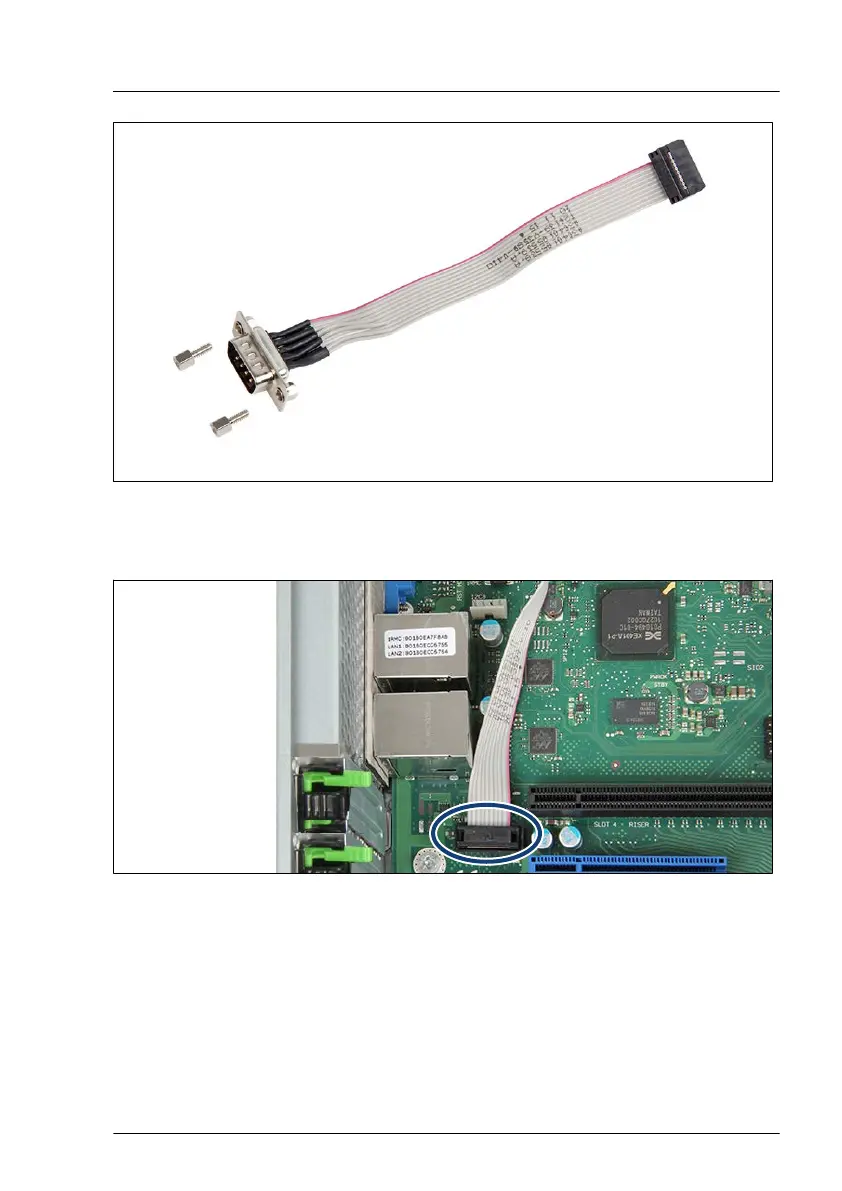

Figure 338: Removing the bolts from the serial interface
Remove the two hexagon bolts.
Figure 339: Installing the serial interface
Connect the cable to the connector "SERIAL" on the system board (see
oval).
Serial interface
TX2550 M5 Upgrade and Maintenance Manual 525
