Breaking out the metal cover

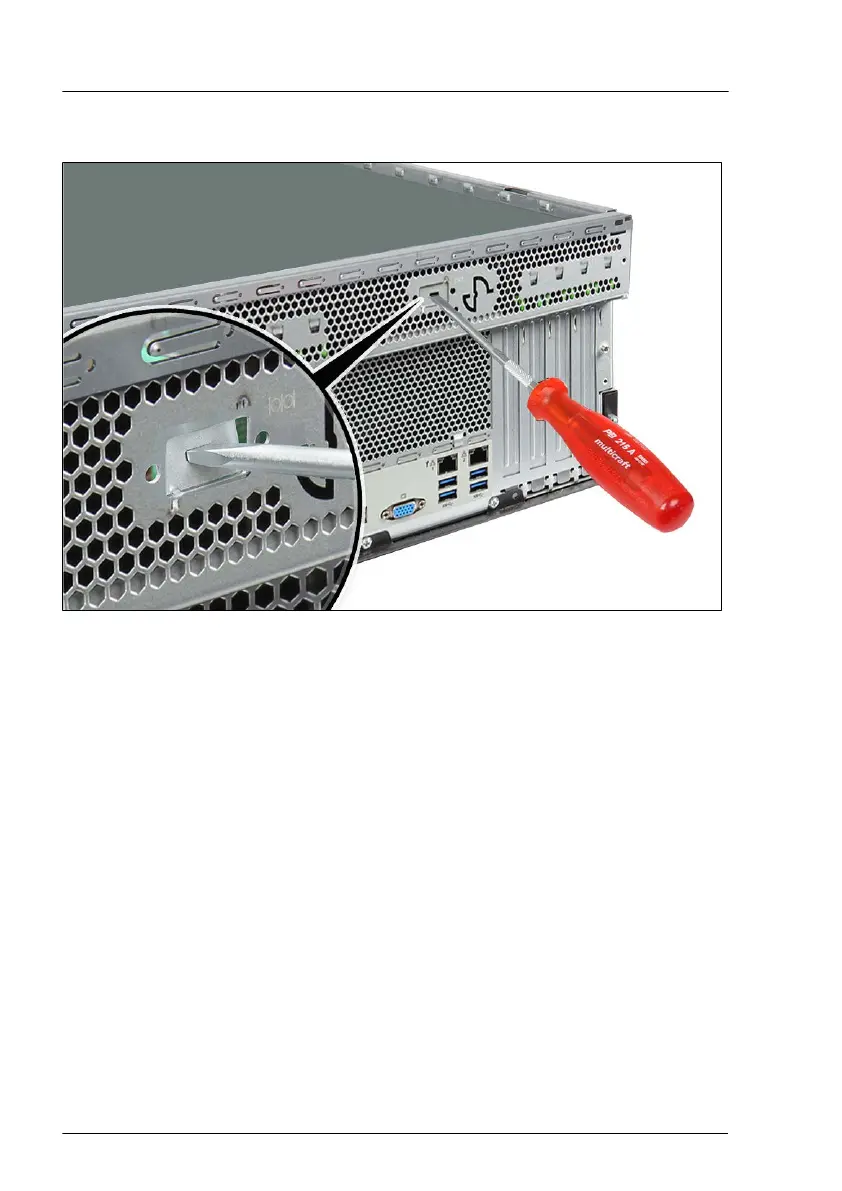

Figure 337: Breaking out the metal cover
▶
If applicable, break out the metal cover from the rear by using a flat screw
driver (see close-up).
▶
Insert the serial interface from inside and fasten it with the two hexagon
bolts UNC 4-40 (see circles).
Installing the serial interface
▶
If applicable, remove an expansion card, see "Removing an expansion
card" on page
358
.
Serial interface
