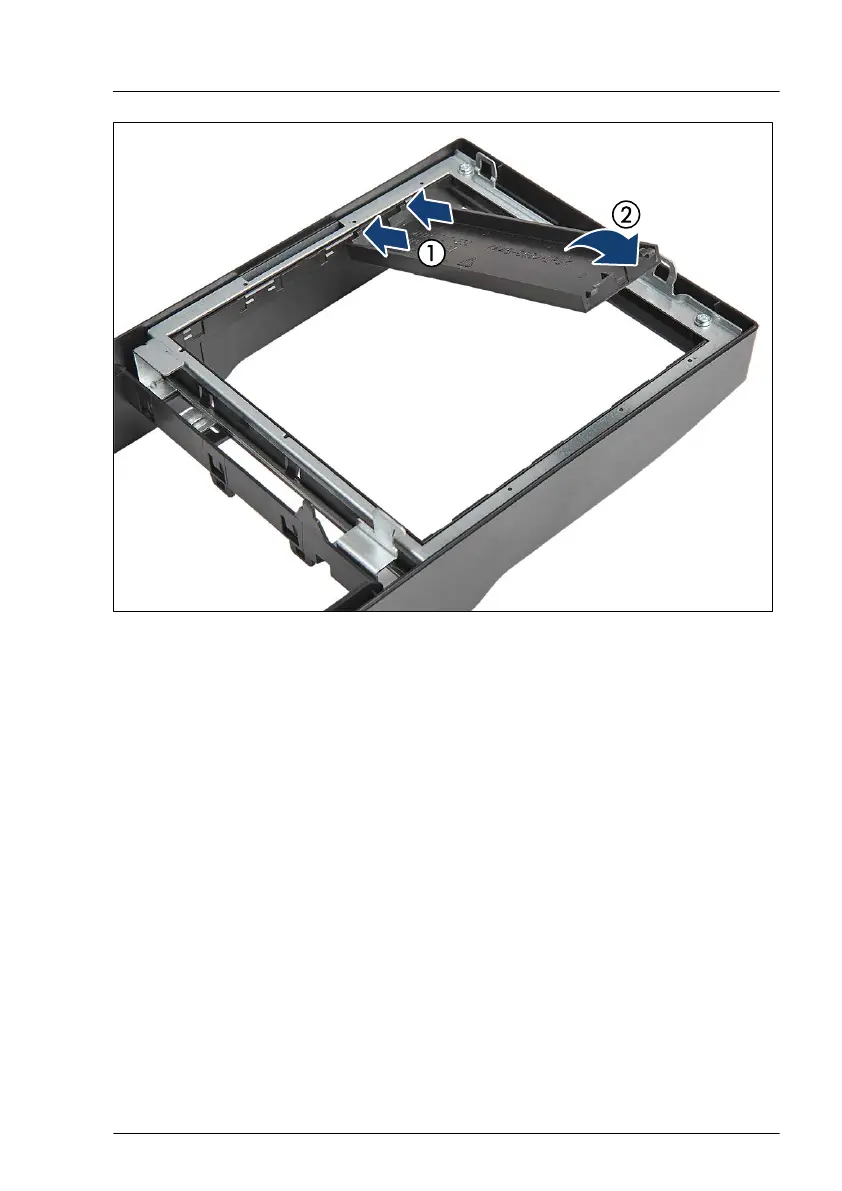

Figure 56: Installing an accessible drive cover
▶
Ensure that an accessible drive filler cover has been installed in every empty
drive bay.
▶
T
urn the front cover face down.
▶
Join the two lugs on one edge of the accessible drive cover with the right
inner edge of the front cover (1).
▶
Fold down the accessible drive cover until it snaps in place (2).
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 103
