Installing the power distribution board

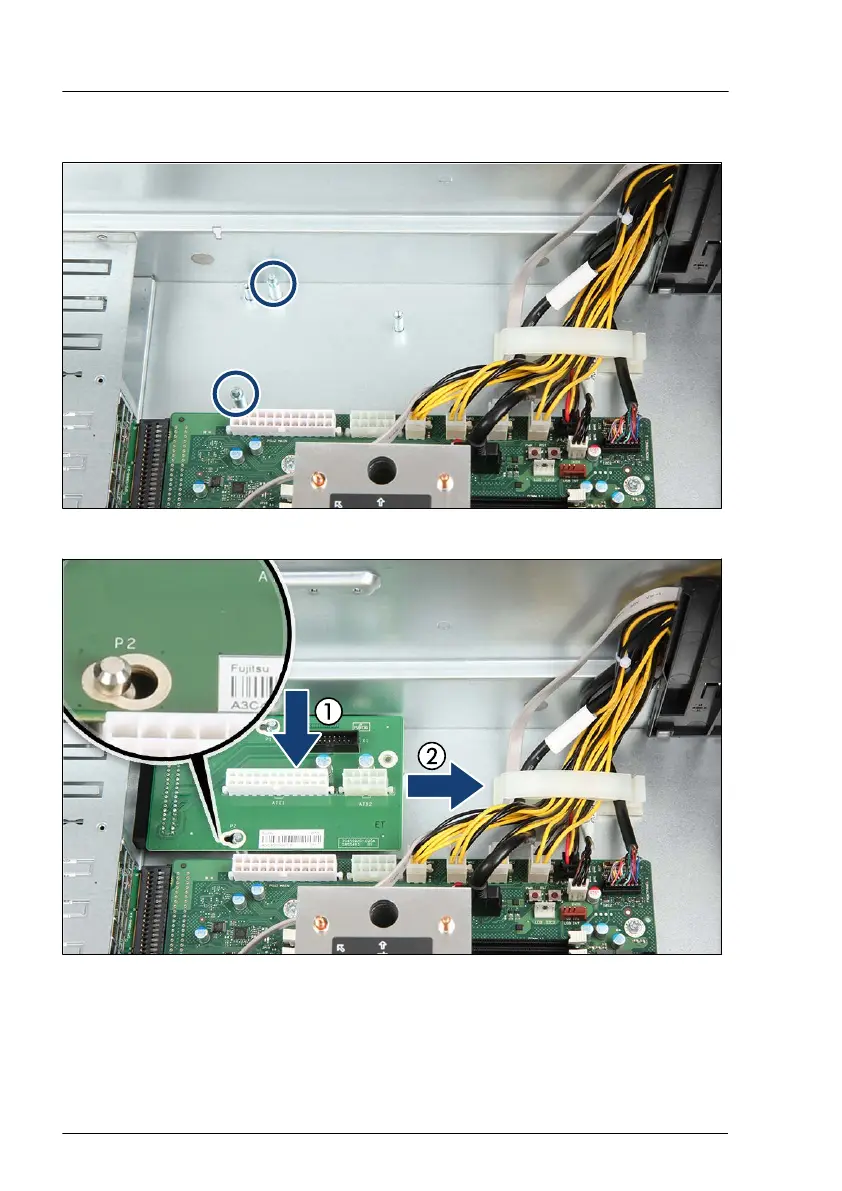

Figure 71: Position of the two bolts
Figure 72: Installing the power distribution board
▶
Place the power distribution board on the two bolts (1).
▶
Push the power distribution board in direction of the arrow (2) until it
engages (see close-up).
Power supply unit (PSU)
156 Upgrade and Maintenance Manual TX2550 M5
