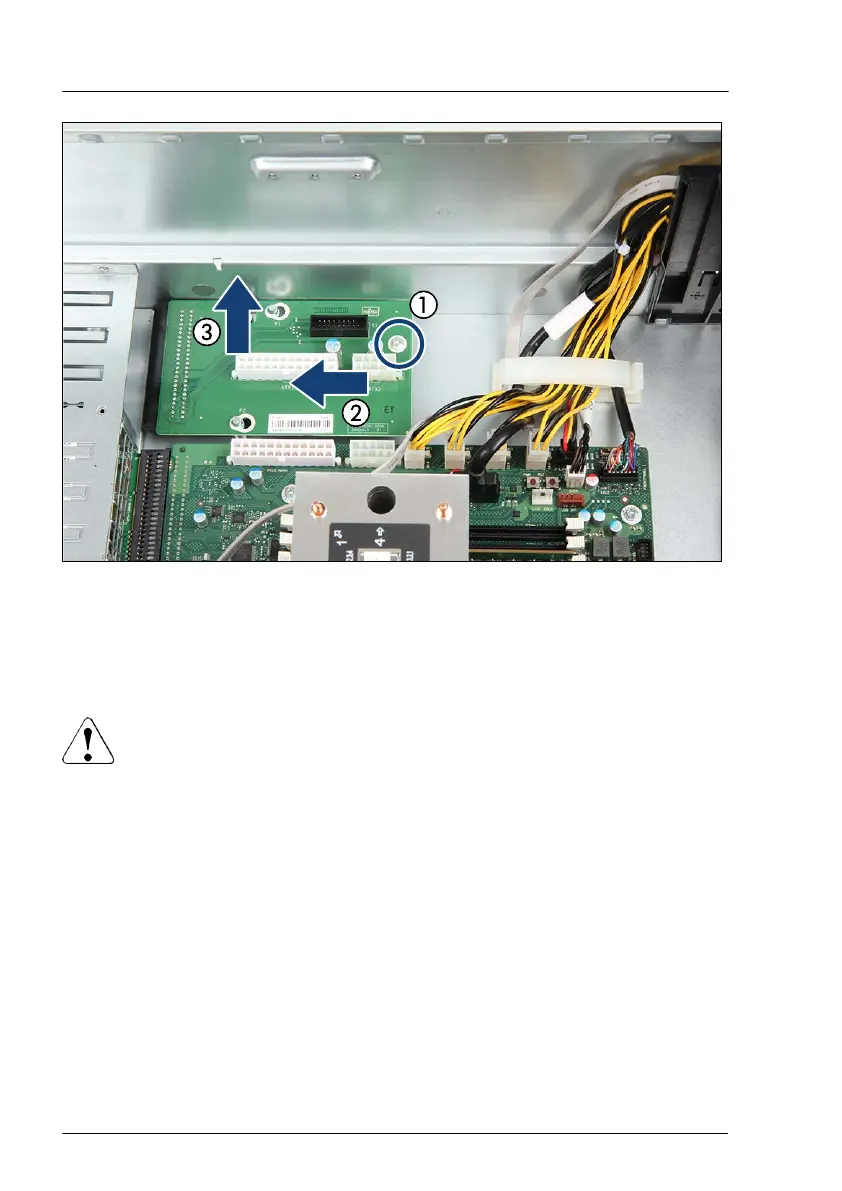

Figure 76: Removing the power distribution board
Remove the screw from the power distribution board (1).
Push the power distribution board in direction of the arrow (2) to unlock the
locking mechanism and remove it (3).
CAUTION
Do not install a PSU in bay 2, if the power distribution board is not
installed.
Concluding steps
"Installing the crossbar" on page 91
.
If applicable, "Installing the riser module" on page 87.
"Installing the PCI air duct" on page 89.
"Installing the system air duct" on page 68.
"Reassembling" on page 68.
"Connecting the power cord" on page 82.
Power supply unit (PSU)
160 Upgrade and Maintenance Manual TX2550 M5
