Removing the 4x 3.5-inch HDD front panel

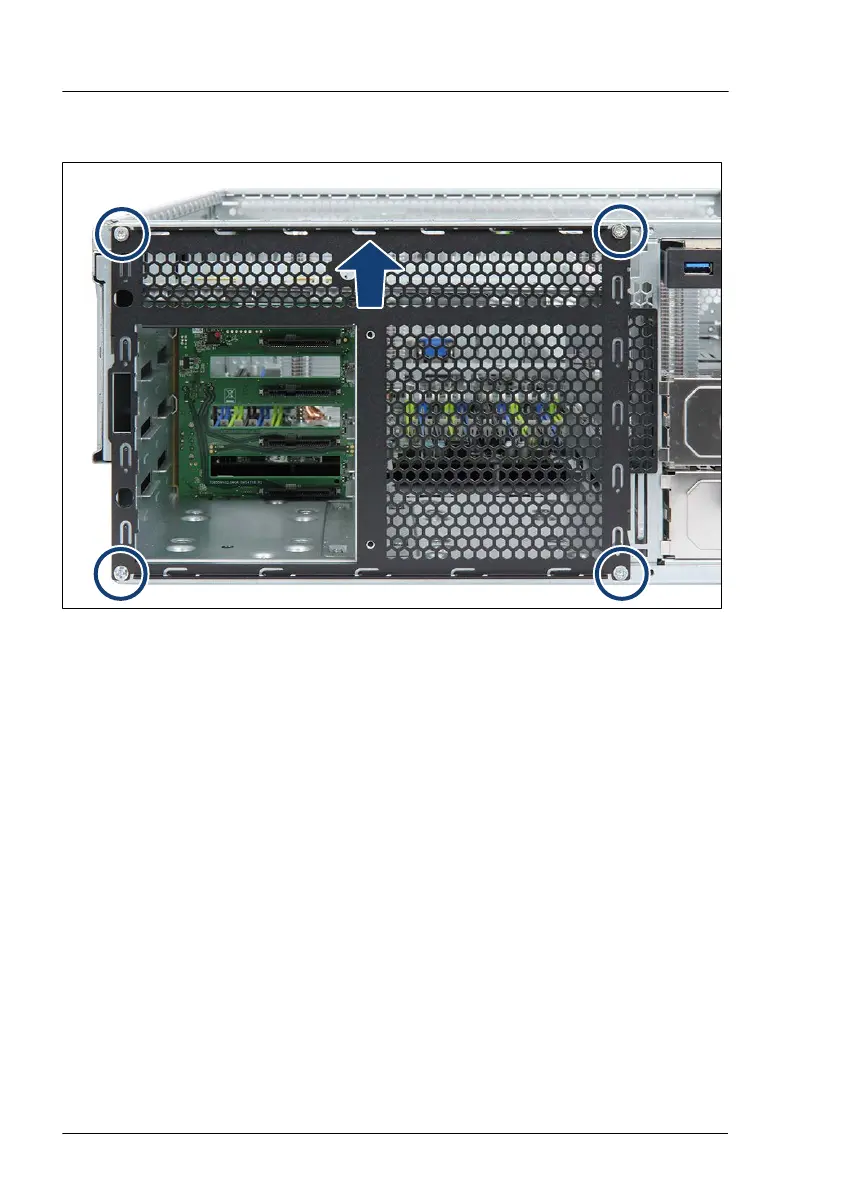

Figure 104: Removing the 4x 3.5-inch HDD front panel
▶
Remove four screws from the 4x 3.5-inch HDD front panel (see circles).
▶
Pull up the 4x 3.5-inch HDD front panel to disengage it from the chassis.
▶
Remove the 4x 3.5-inch HDD front panel.
Hard disk drive (HDD) / solid state disk (SSD)
196 Upgrade and Maintenance Manual TX2550 M5
