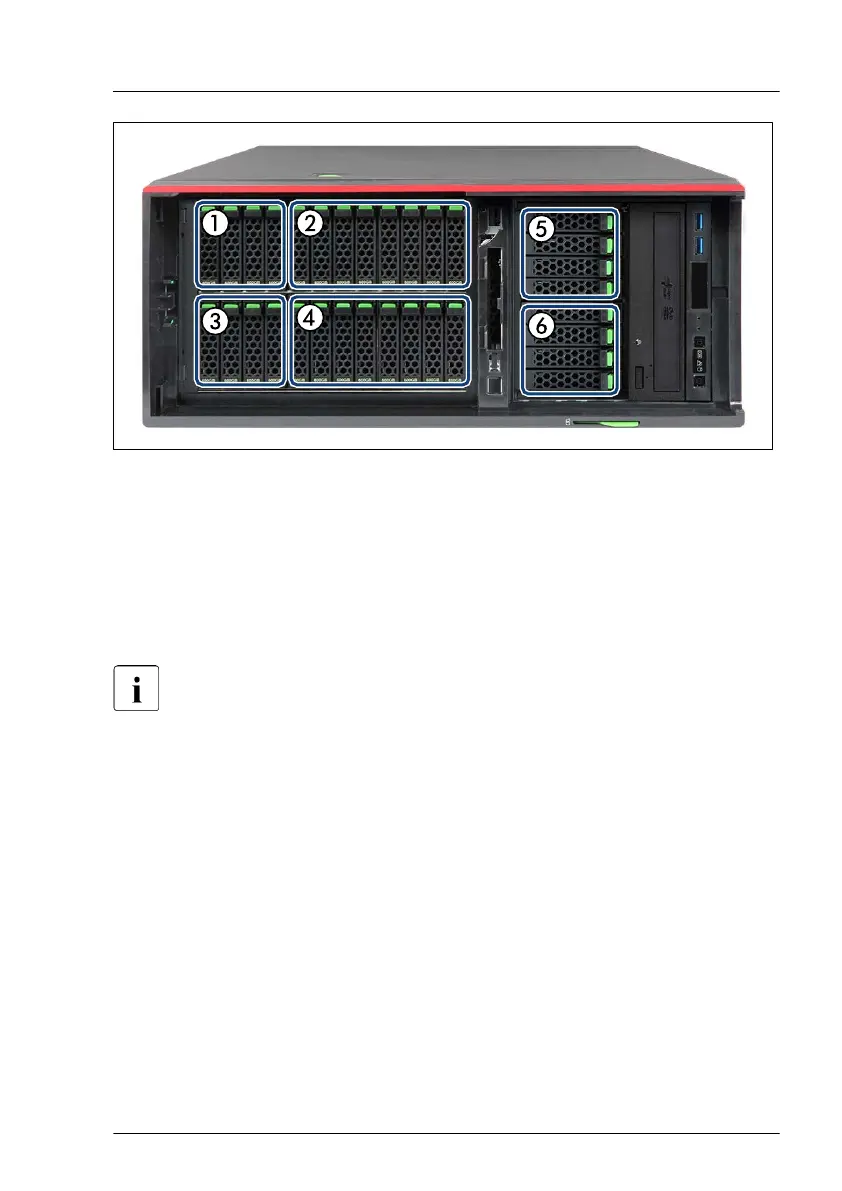

Figure 114: Example: six backplanes - floorstand model
1 SAS backplane 1 in HDD cage 1 (basic
configuration)
2 SAS backplane 2 in HDD cage 1 (basic
configuration)
3
SAS backplane 3 in HDD cage 2 (basic
configuration)
4 SAS backplane 4 in HDD cage 2 (basic
configuration)
5 PCIe SSD backplane 1 in optional 4x
2.5-inch PCIe SSD extension box
6 PCIe SSD backplane 2 in optional 4x
2.5-inch PCIe SSD extension box
This numbering is based on "Configurations with additional PCIe-SSDs"
on page
215
.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 207
