Preliminary steps
When working on a floorstand model, open the HDD bay cover, see
"Removing the accessible drive bay cover" on page
63.
Locate the correct drive bay, see "2.5-inch HDD/SSD configurations" on
page 202.
Depending on your OS (see the "NVMe User Guide"): "Shutting down the
server" on page 49.
Removing a 2.5-inch HDD/SSD dummy module

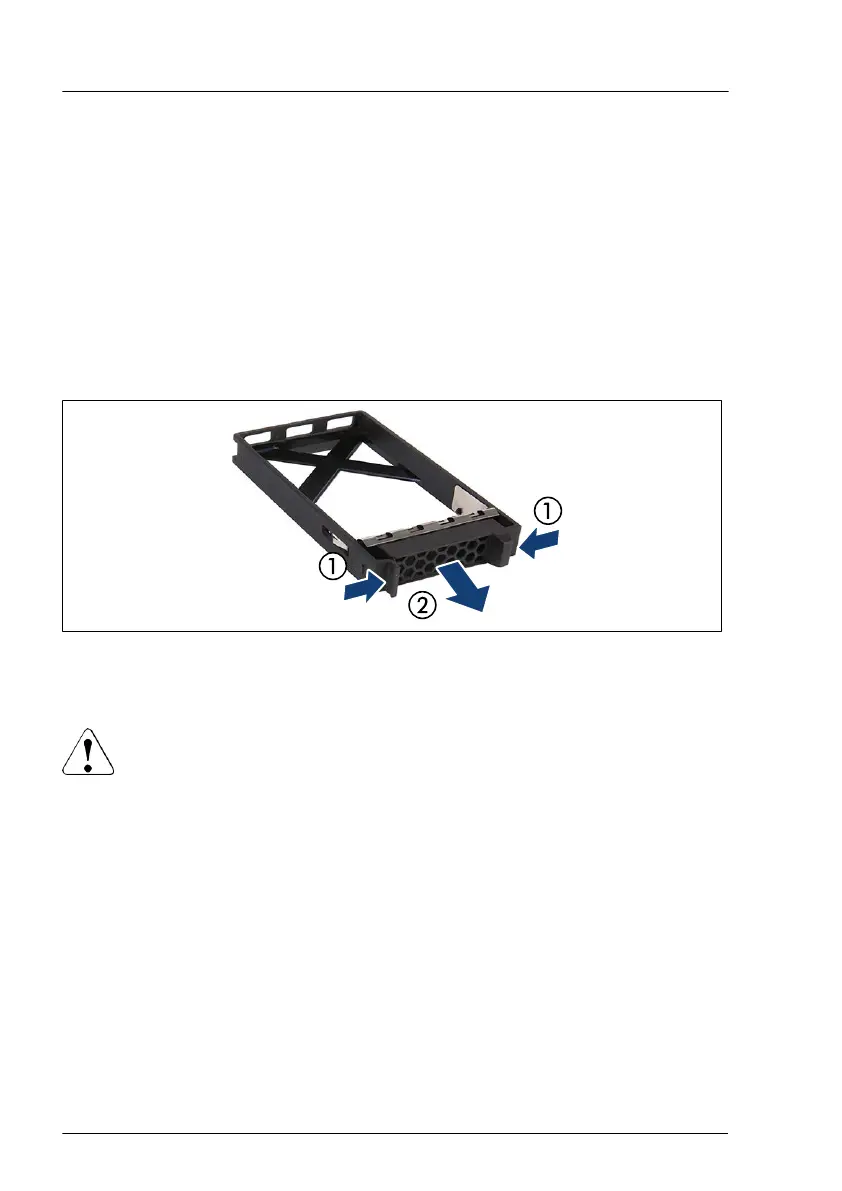

Figure 126: Removing a 2.5-inch HDD/SSD dummy module
Press both tabs together (1) and pull the dummy module out of its bay (2).
CAUTION
Keep the dummy module for future use.
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Hard disk drive (HDD) / solid state disk (SSD)
226 Upgrade and Maintenance Manual TX2550 M5
