Fujitsu PRIMERGY TX2550 M5

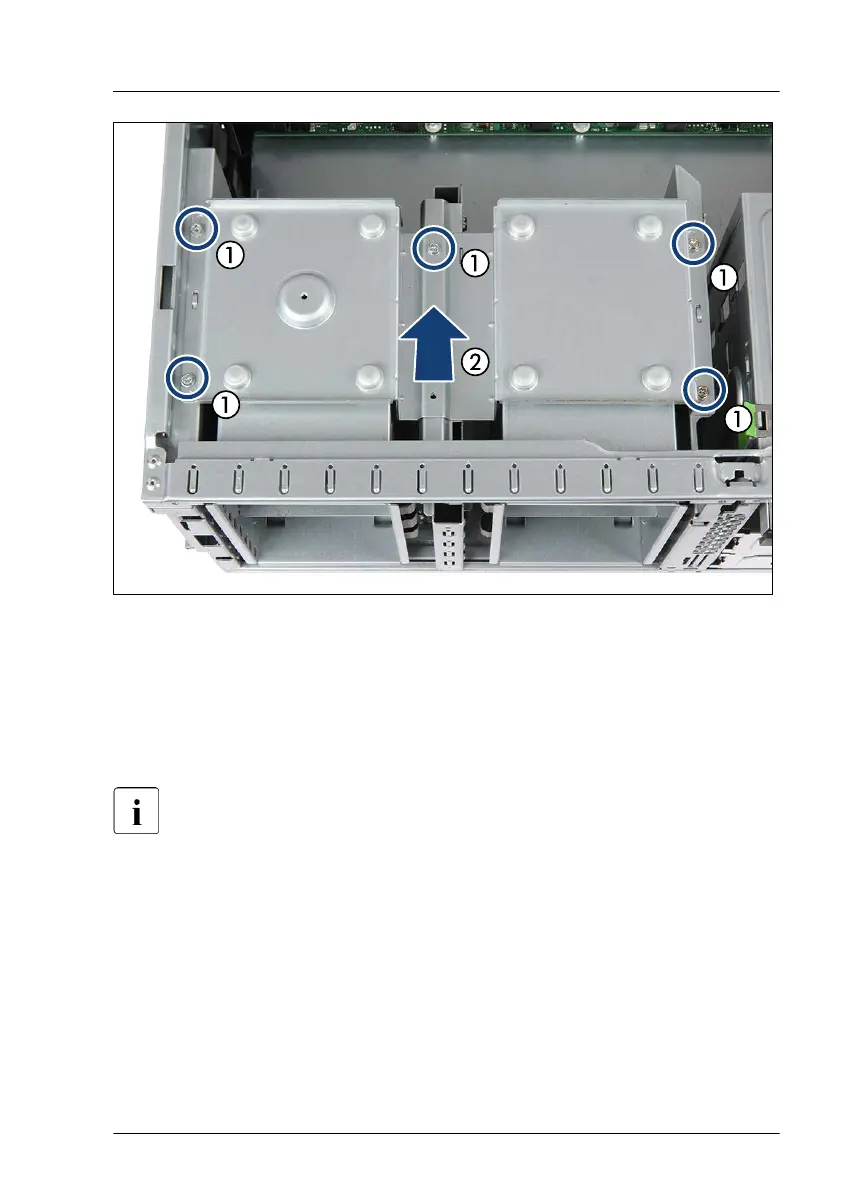

Figure 133: Removing the 2.5-inch HDD/SSD bay top cover
▶
Remove five screws from the 2.5-inch HDD/SSD bay top cover (1).
▶
Remove the 2.5-inch HDD/SSD bay top cover from the chassis (2).
Removing a 2.5-inch HDD/SSD SAS backplane
The 2.5-inch HDD/SSD front cover does not need to be removed in
order to replace a 2.5-inch HDD/SSD SAS backplane. In the figures, the
front cover has been removed for illustration purposes only.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 235
