Installing a 2.5-inch HDD/SSD SAS backplane

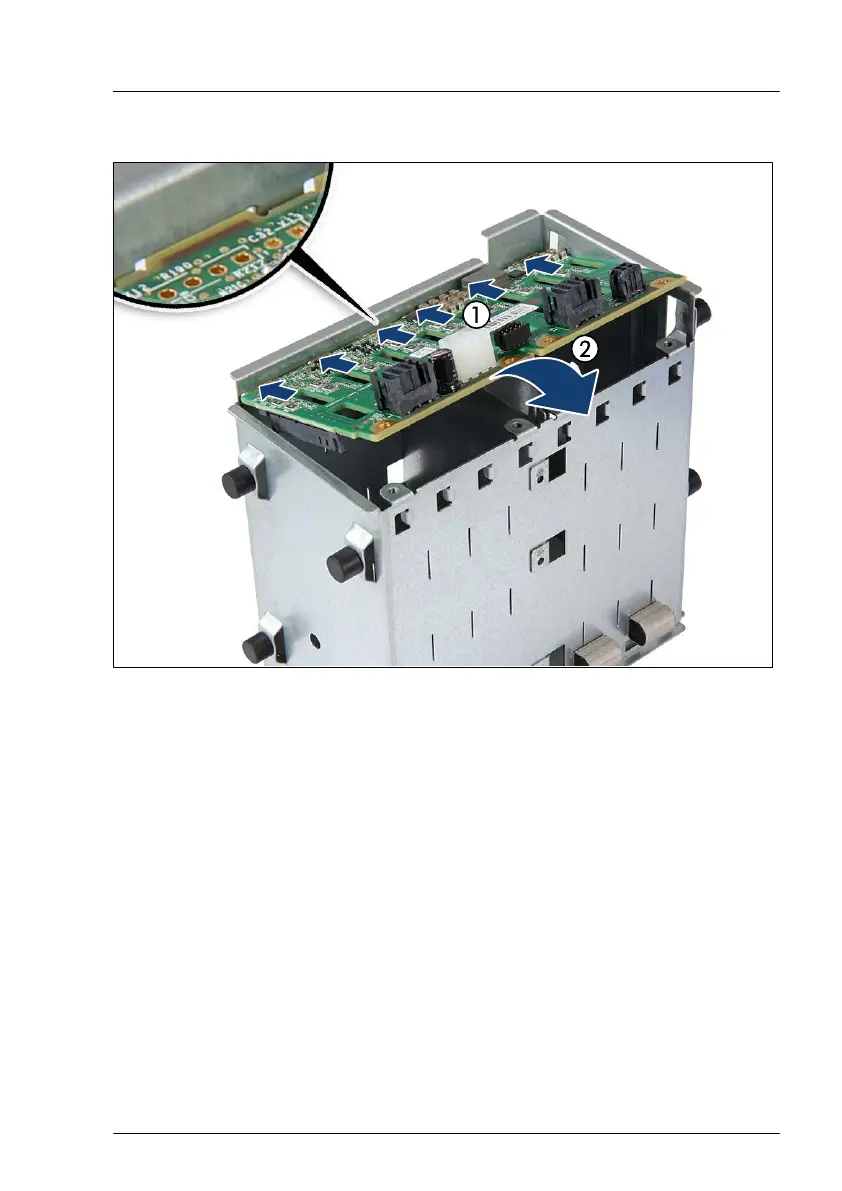

Figure 137: Installing the new 2.5-inch HDD/SSD SAS backplane (A)
▶
At a slight angle, fit the new 2.5-inch HDD/SSD SAS backplane into the six
recesses in the HDD cage (1).
▶
Fold down the 2.5-inch HDD/SSD SAS backplane (2).
Hard disk drive (HDD) / solid state disk (SSD)
