Fujitsu PRIMERGY TX2550 M5

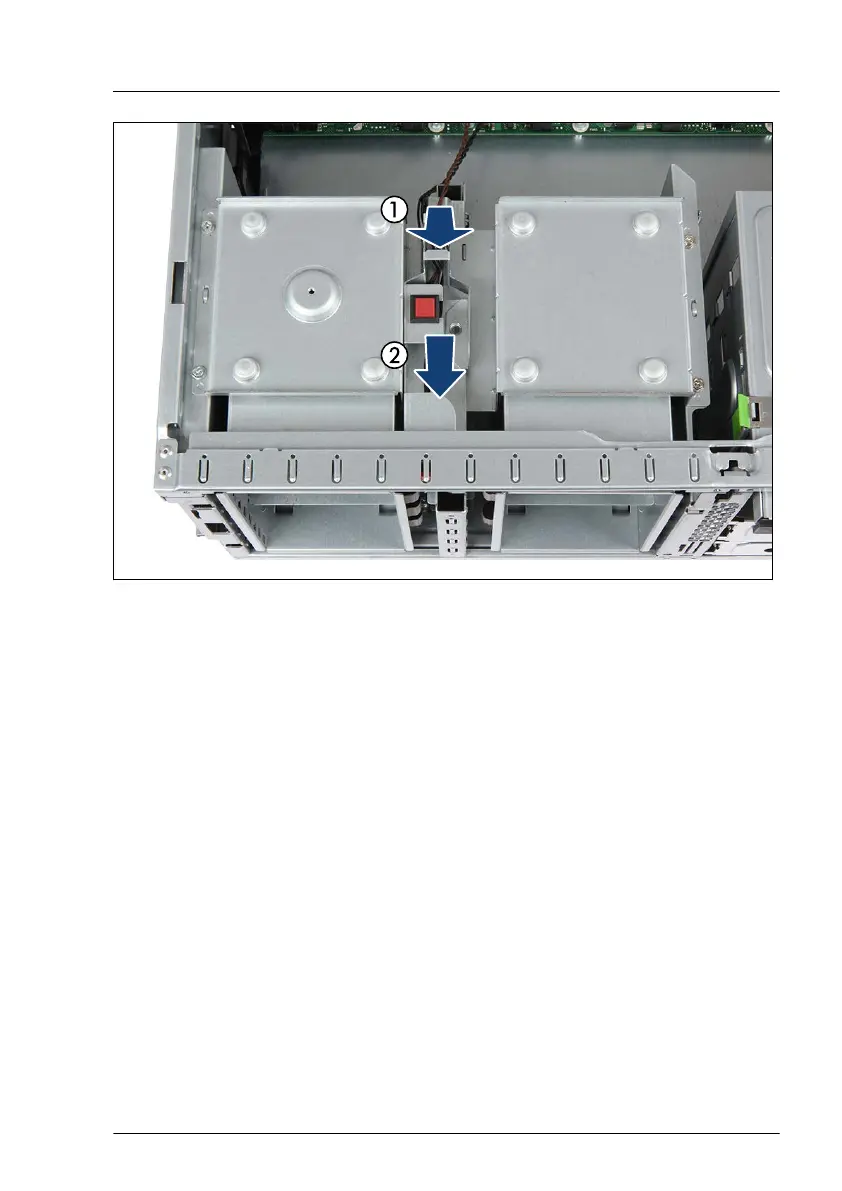

Figure 141: Installing the intrusion switch holder (A)
▶
Place the intrusion switch holder on the HDD bay top cover as shown (1).
▶
Push the intrusion switch holder under the front chassis rim as far as it will
go (2).
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 243
