Installing the new HDD/SSD backplane

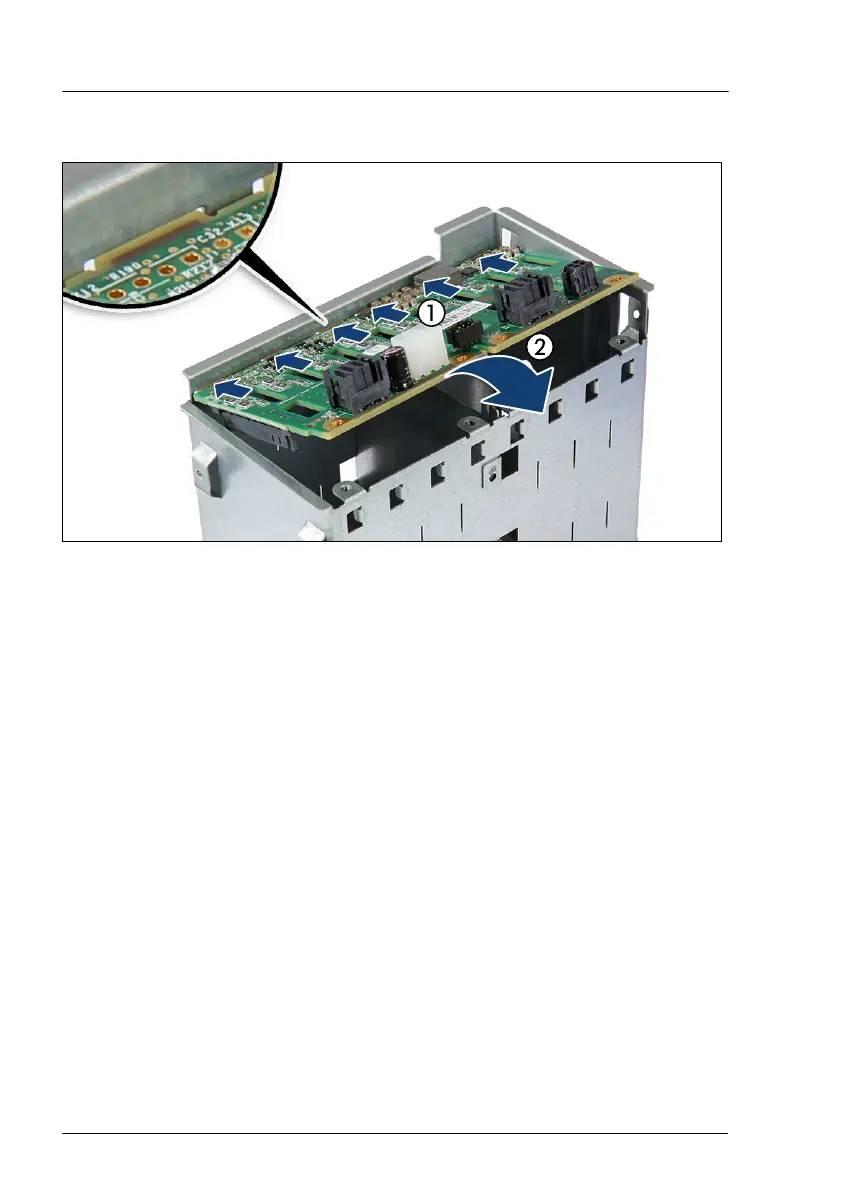

Figure 167: Installing the HDD/SSD backplane
At a slight angle, fit the HDD/SSD backplane into the six recesses in the
HDD extension box (1).
Fold down the HDD/SSD backplane (2).
Fasten the HDD/SSD backplane with four screws (see Figure 165).
Install the 8x 2.5-inch HDD/SSD extension box, see "Installing a 8x 2.5-inch
HDD/SSD extension box" on page
266
.
Concluding steps
Install the fan bridge, see "Handling the fan bridge" on page 92.
"Installing the system air duct" on page 68.
"Reassembling" on page 68.
Install all HDD/SSD modules or dummy modules into their original slots in
the HDD/SSD extension box, see "Installing 2.5-inch HDD/SSD modules"
on page 218 and "Installing a 2.5-inch dummy module" on page 222.
"Connecting the power cord" on page 82.
Hard disk drive (HDD) / solid state disk (SSD)
276 Upgrade and Maintenance Manual TX2550 M5
