"Disconnecting the power cord" on page 50
.
Remove all HDD modules from the HDD extension box, see "Removing 3.5-
inch HDD modules" on page 179.
If applicable, remove all dummy modules from the HDD extension box, see
"Removing a 2.5-inch HDD/SSD dummy module" on page 219.
"Getting access to the component" on page 51.
"Removing the system air duct" on page 67.
Remove the fan bridge, see "Handling the fan bridge" on page 92.
Removing the 4x 3.5-inch HDD extension box
Remove all cables from the 4x 3.5-inch HDD extension box backplane.
If applicable, remove all cables from the slimline ODD.
Disengage the accessible drive locking bar, see "Opening the accessible
drive locking bar" on page 96.

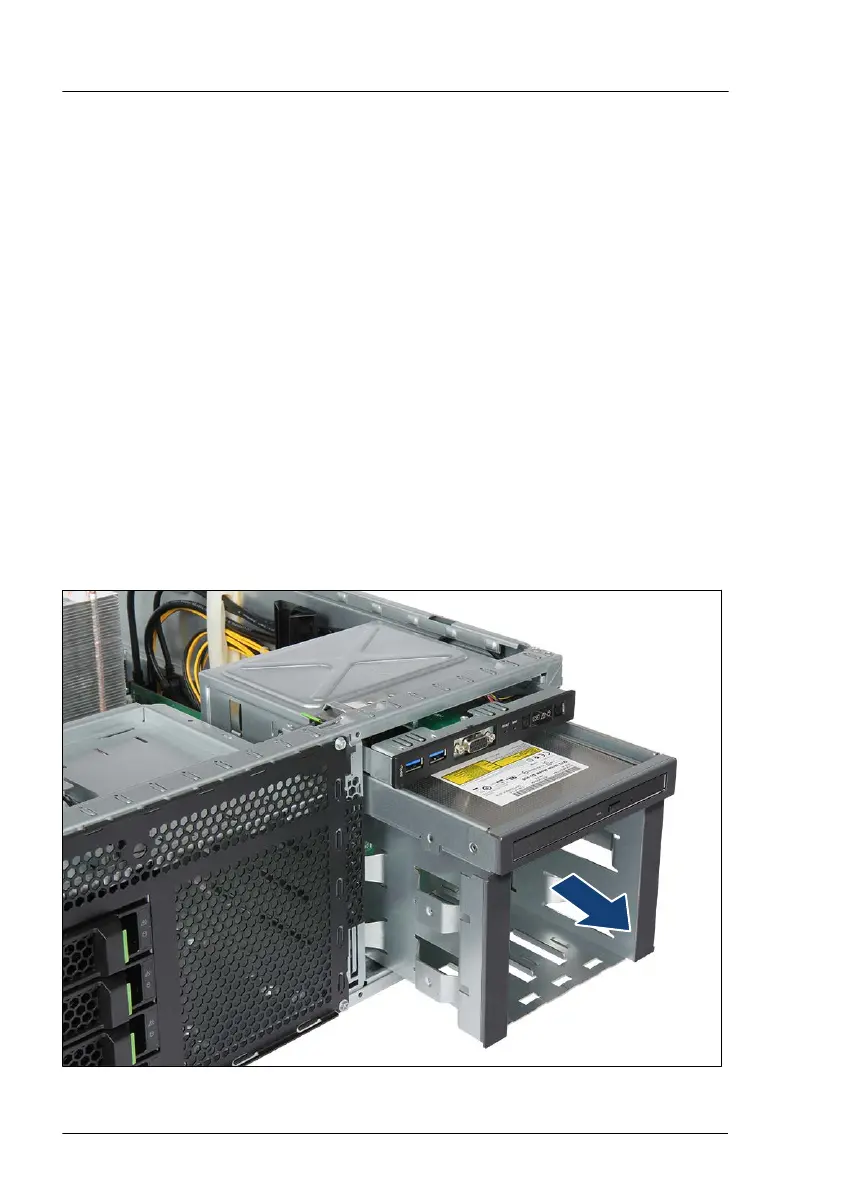

Figure 171: Removing the HDD extension box
Hard disk drive (HDD) / solid state disk (SSD)
282 Upgrade and Maintenance Manual TX2550 M5
