Installing the new PCIe SSD backplane

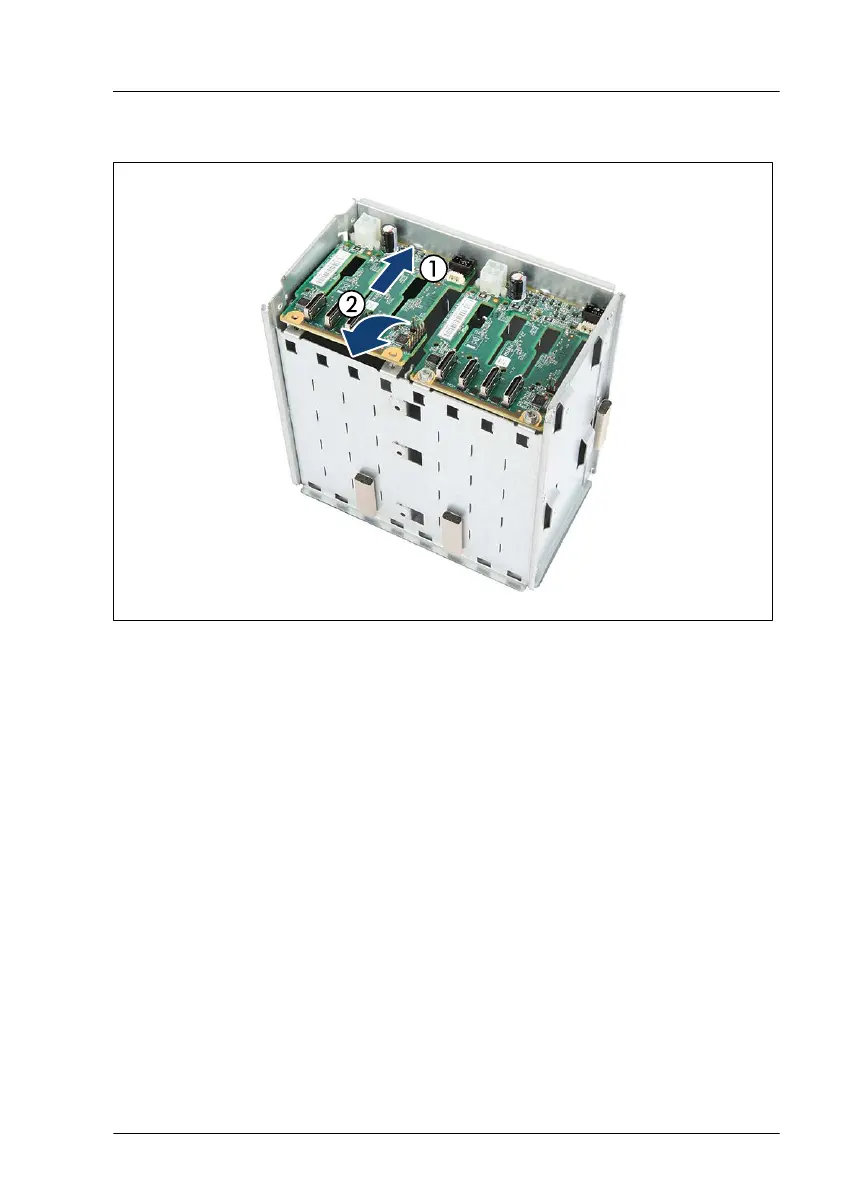

Figure 182: Installing the PCIe SSD backplane
▶
At a slight angle, fit the PCIe SSD backplane into the three recesses in the
PCIe SSD extension box (1).
▶
Fold down the PCIe SSD backplane (2).
▶
Fasten the PCIe SSD backplane with two screws (see Figure 180).
▶
Install the 8x 2.5-inch PCIe SSD extension box, see "Installing a 8x 2.5-inch
HDD/SSD extension box" on page
266.
Concluding steps
▶
If applicable, install the fan bridge, see "Handling the fan bridge" on
page
92.
▶
"Installing the system air duct" on page 68.
▶
"Reassembling" on page 68.
Hard disk drive (HDD) / solid state disk (SSD)
