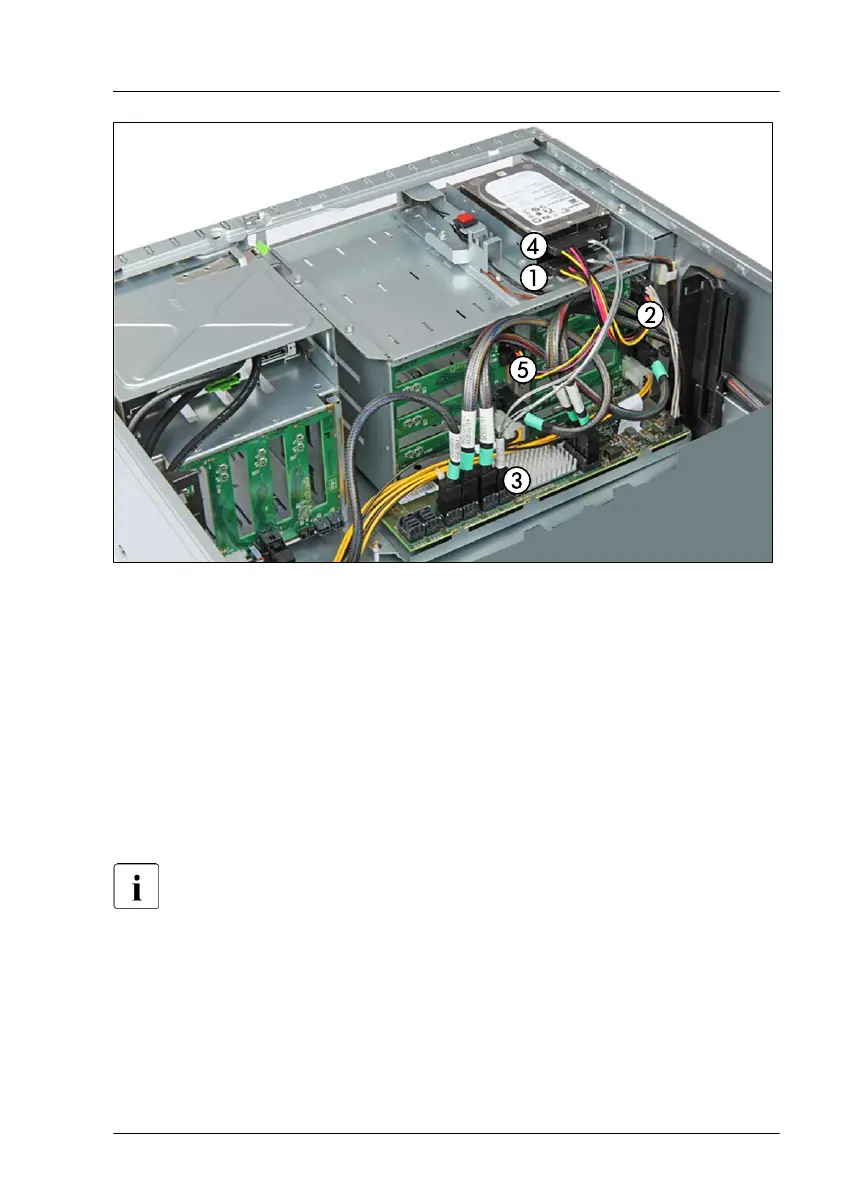

Figure 189: Connecting cables to the non-hot-plug HDDs/SSDs
▶
Connect the cable C35:
1 The data/power connector "P2" to non-hot-plug HDD/SSD 1
2 To the connector "X18" on HDD backplane 1
3 To the connector "X10" on the SAS expander board
4 If applicable, to the data/power connector "P3" to non-hot-plug
HDD/SSD 2
5 If applicable, to the connector "X18" on HDD backplane 2
For the cable plan see "Appendix B" on page 589
.
Concluding steps
▶
Install the fan bridge, see "Handling the fan bridge" on page 92
.
▶
"Installing the system air duct" on page 68.
▶
"Reassembling" on page 68.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 305
