"Getting access to the component" on page 51
.
▶
"Removing the system air duct" on page 67.
▶
Remove the fan bridge, see "Handling the fan bridge" on page 92.
Removing the SAS expander board holder
▶
Disconnect all cables from the SAS expander board.

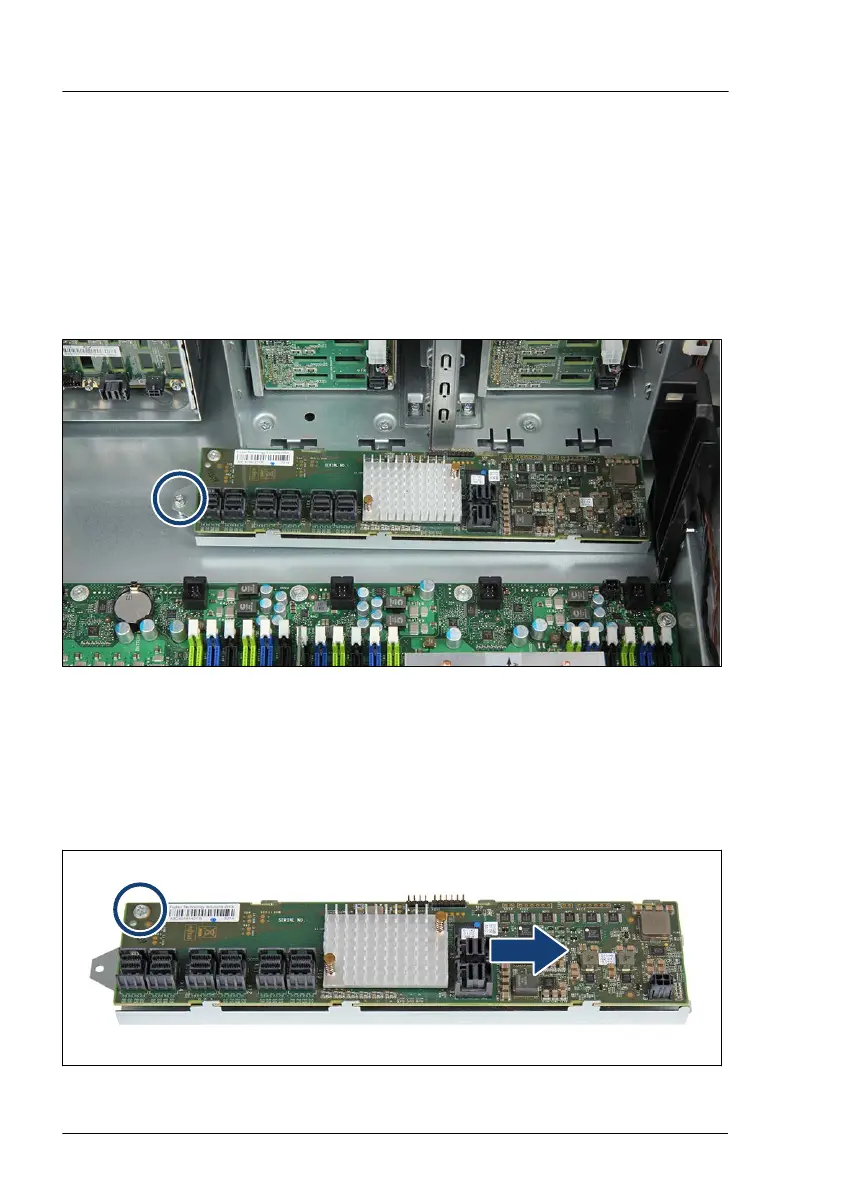

Figure 196: Removing the SAS expander board holder
▶
Remove the screw (see circle).
▶
T
ake the SAS expander board holder out of the chassis.
Removing the SAS expander board
Figure 197: Removing the SAS expander board
Hard disk drive (HDD) / solid state disk (SSD)
