Preliminary steps
▶
"Locating the defective server" on page 47
.
▶
"Getting access to the component" on page 51.
▶
"Locating the defective component" on page 48.
Removing the defective system fan module

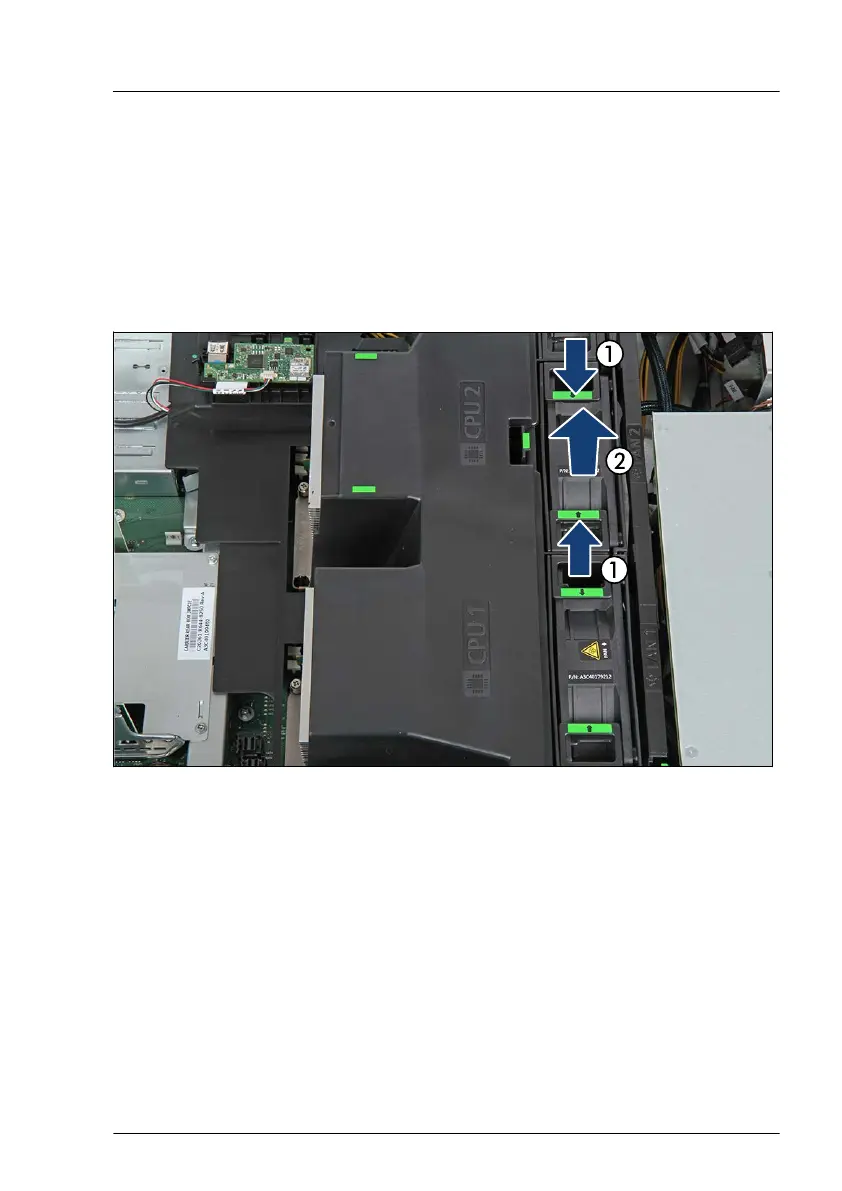

Figure 199: Removing the fan module
▶
Take the fan module by the two handles (1).
▶
Lift the fan module out of the fan bridge (2).
Fans
TX2550 M5 Upgrade and Maintenance Manual 317
