For the latest information on supported expansion cards, see the
hardware configurator of your server available online at the following
address:
https://ts.fujitsu.com/products/standard_servers/index.htm
For Japan:
https://www.fujitsu.com/jp/products/computing/servers/primergy/

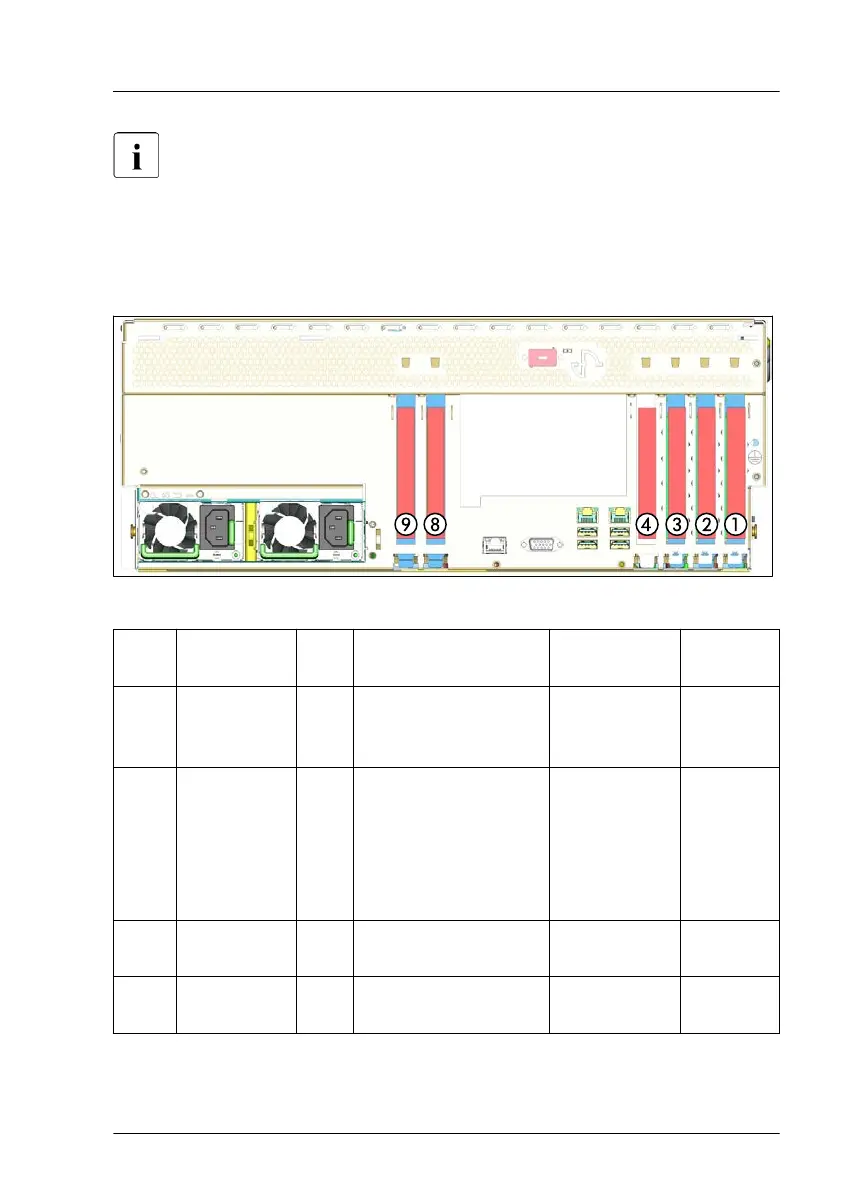

Figure 202: PCIe slot overview on the rear - low performance
PCIe
slot
Type CPU Type Length/
Height
Function
1 PCIe Gen 3 1 x8 (mechanical x8) max.
167
mm / FH
second
RAID
controller
2 PCIe Gen 3 1 x8 (mechanical x8) max.
167 mm / FH
preferred
slot for
RAID
controller
(system
boot)
3 PCIe Gen 3 1 x8 (mechanical x8) max.
167 mm / FH
4 PCIe Gen 3 1 x16 (mechanical x16) max.
167 mm / FH
