Removing the expansion card

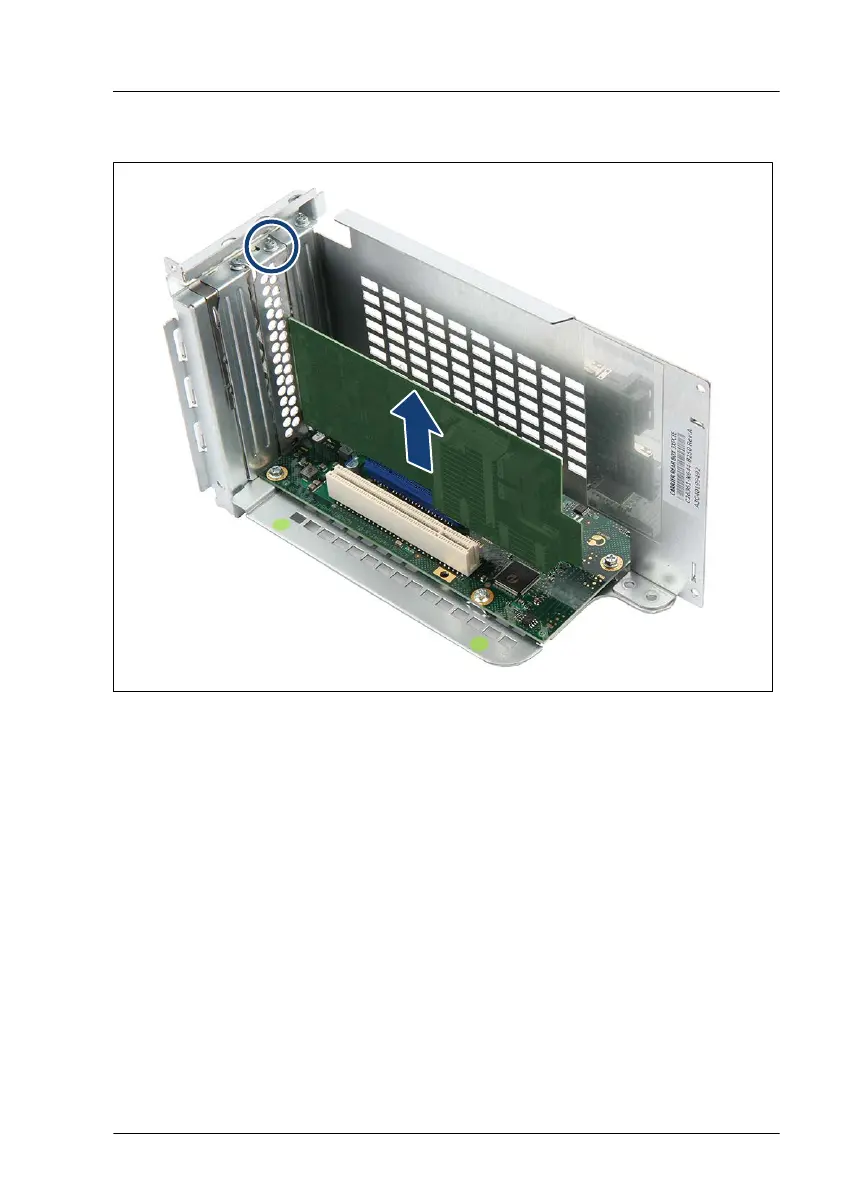

Figure 237: Removing the expansion card from the riser module
▶
Remove the screw (see circle).
▶
Remove the expansion card.
Expansion cards and backup units
TX2550 M5
Upgrade and Maintenance Manual
367
