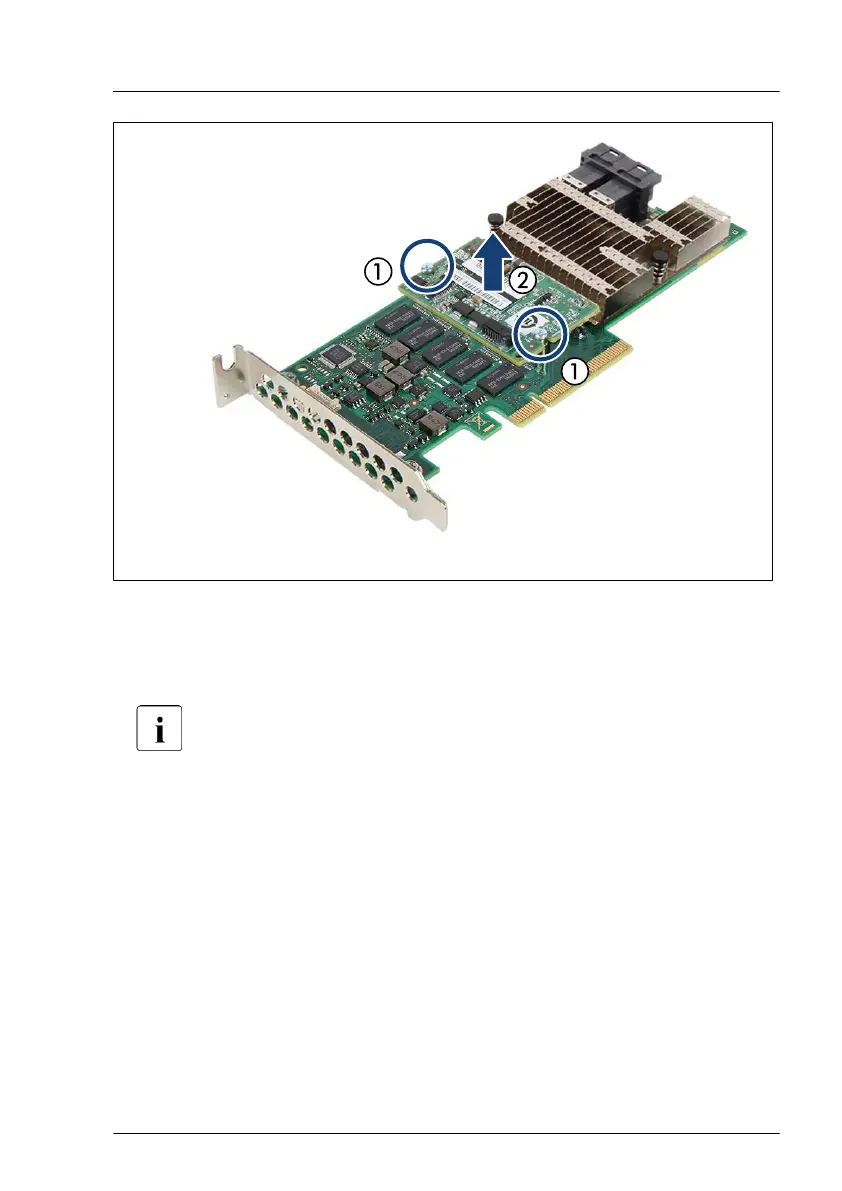

Figure 243: Removing the TFM
▶
Remove the two screws (1).
▶
Remove the TFM (2).
Note for replacing the TFM: The two spacer bolts can remain on the
RAID controller.
Concluding steps
▶
"Reassembling" on page
68
.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
