Preparing the FBU

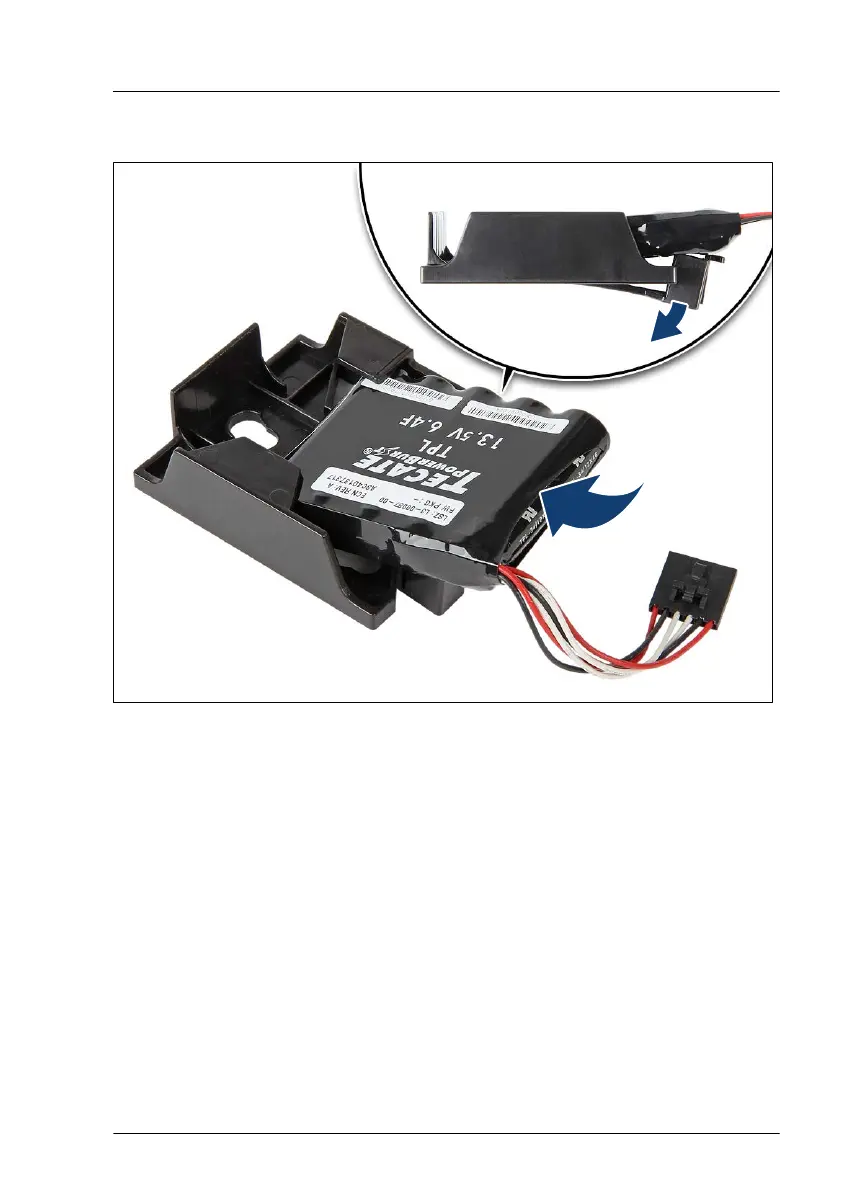

Figure 246: Installing the FBU in the holder (A)
▶
At a slight angle, fit the FBU under both retaining brackets of the holder.
▶
Push in the FBU until it locks in place.
Expansion cards and backup units
TX2550 M5 Upgrade and Maintenance Manual 381
