Fujitsu PRIMERGY TX2550 M5 Upgrade And Maintenance Manual

–
Six channel DDR4 memory architecture (per CPU), 2 DIMMs per channel
–
12 memory DIMM sockets R3 (6 per CPU)
–
Supports RDIMM w/ ECC, LRDIMM, 3DS-LRDIMM and NVM/LRDIMM
–
Supports DDR4 up to 2933 MT/s
–
Supports NVM/LRDIMM up to 2666 MT/s
–
Up to 3TB/CPU using DDR4 DIMM (256 GB modules)
–
Up to 4TB/CPU using NVM/LRDIMM + DDR4
–
Error detection and correction (ECC)
–
Lockstep mode is not supported by BIOS on this platform
–
SDDC (single device data correction) for all single x4 DIMM failures
–
x8 DIMM SDDC requires lockstep mode, but lockstep mode is not
supported
–
Channel mirroring within a CPU socket
–
Hardware memory scrubbing
–
Rank level sparing
The notation of the CPU, memory channels and DIMM sockets correspond to
the silk print on the system board.
On second CPU the memory channels are named G, H, J, K, L and M and
placed accordingly
.

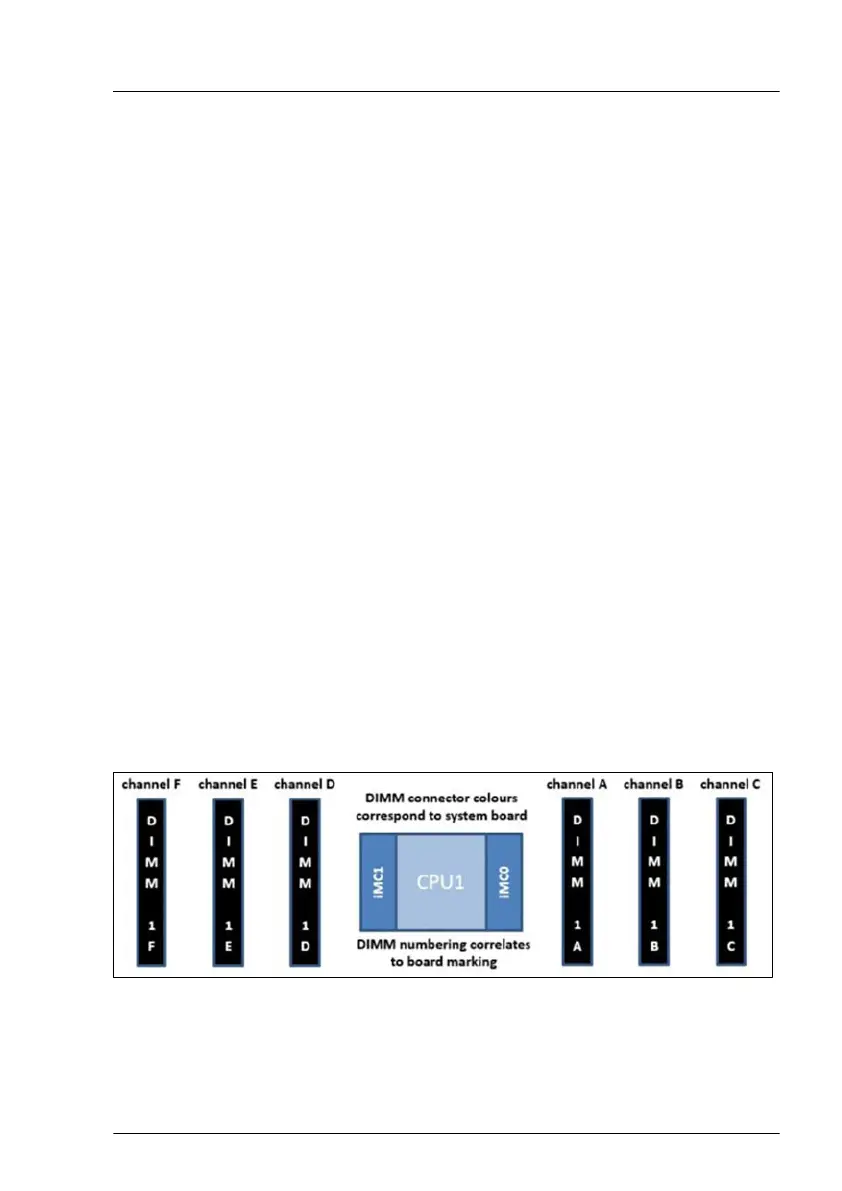

Figure 256: Memory slots of CPU 1
Main memory
TX2550 M5 Upgrade and Maintenance Manual 395

Fujitsu PRIMERGY TX2550 M5 Specifications

General

Tcase	78 °C
Scalability	2S
Processor cache	13.75 MB
Processor cores	10
Processor model	4210
System bus rate	- GT/s
Processor socket	LGA 3647 (Socket P)
Processor threads	20
Processor codename	Cascade Lake
Execute Disable Bit	Yes
Processor frequency	2.2 GHz
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	76.0 x 56.5 mm
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX-512
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Maximum number of PCI Express lanes	48
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Maximum internal memory supported by processor	1024 GB
Memory slots	12
Internal memory	16 GB
Memory clock speed	2933 MHz
Maximum internal memory	1500 GB
HDD size	2.5 \
RAID levels	0, 1, 5, 6, 10, 50, 60
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Optical drive type	No
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs supported	8
Chassis type	Tower
Product color	Black, Red
Operating system installed	-
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Storage Server 2012 R2 Standard VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 Red Hat Enterprise Linux
Power supply	800 W
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, VCCI, KN32, KN35, CCC, C-Tick
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
PCI Express slots version	3.0
On-board graphics card model	Not available
Processor ARK ID	193384

Weight and Dimensions

Depth	177 mm
Width	448 mm
Height	736 mm
