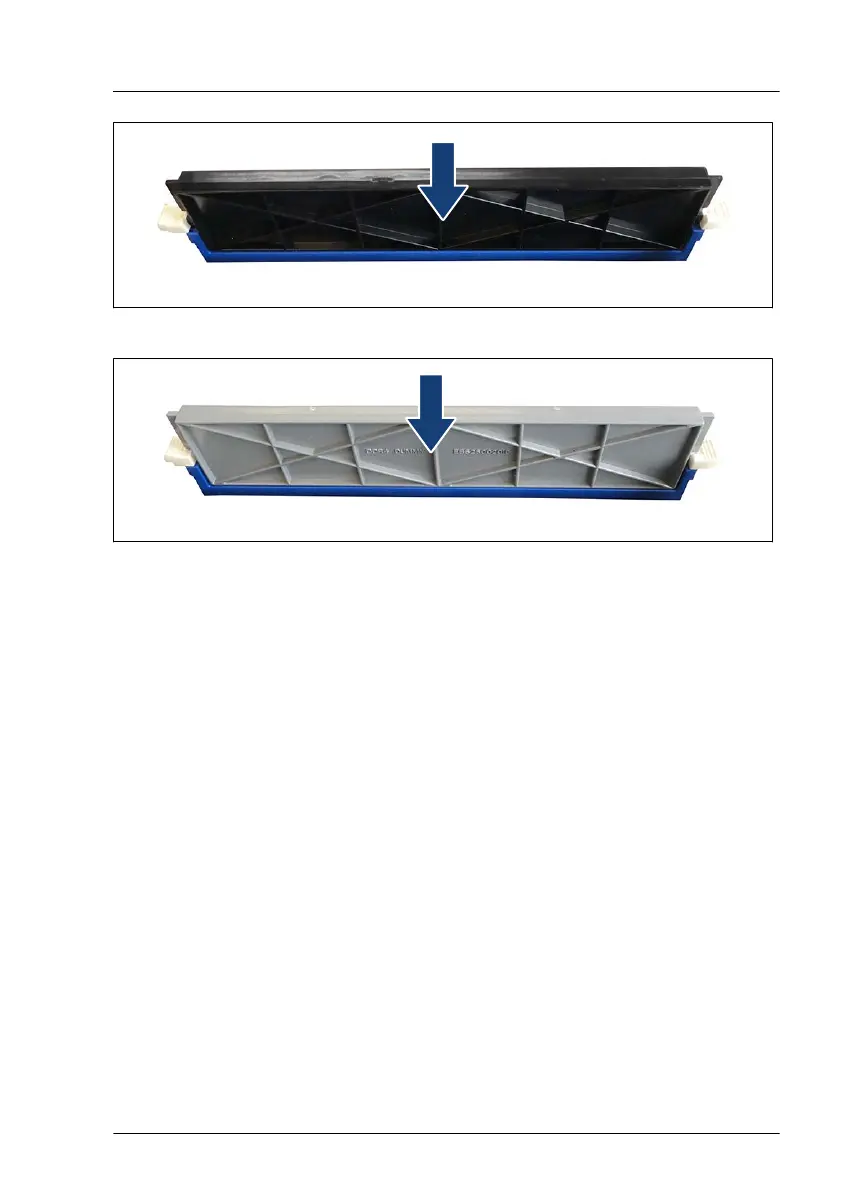

Figure 262: Installing a memory dummy module - variant 1
Figure 263: Installing a memory dummy module - variant 2
Align the notch on the bottom of the module with the crossbar in the slot.
Press down on the dummy module until the securing clips snap into the
cutouts at each end of the module.
Main memory
TX2550 M5 Upgrade and Maintenance Manual 407
