Fujitsu PRIMERGY TX2550 M5 - Page 410

CSS
USB3.0
Front
ODD
OOB
Front
Panel 1
USB2.0
Internal
HDD LED 2
PSU 2
CTRL
FAN 1/2 FAN 5/6 FAN 9/10 FAN 11/12
CPU 2
CPU 1
VPP CPU1
VPP CPU2
JP3
Intrusion
USB3.0
Internal
ROC
LCD
PSU2 EXTPSU2 MAIN
SATA
SATA
0-3
Front Panel
2
PWR1 PWR2 PWR3 PWR4
CPU 2 DIMM 1K
CPU 2 DIMM 1L
CPU 2 DIMM 1M
CPU 1 DIMM 1C
CPU 1 DIMM 1B
CPU 1 DIMM 1A
CPU 1 DIMM 1D
CPU 1 DIMM 1E
CPU 1 DIMM 1F
CPU 2 DIMM 1J
CPU 2 DIMM 1H
CPU 2 DIMM 1G
HDD LED 1

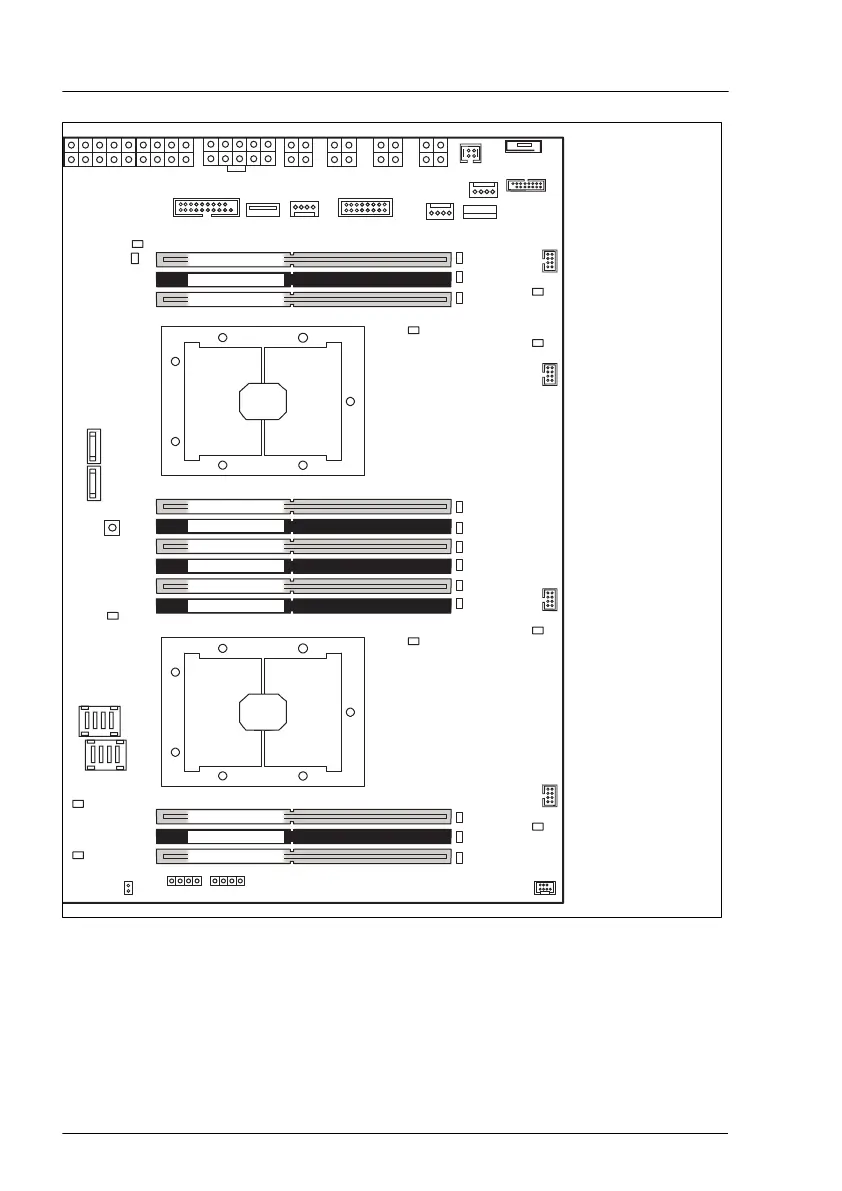

Figure 264: CPU slots
Supported CPUs
–
up to two Intel
®
Xeon
®
CPUs (Platinum, Gold, Silver, Bronze)
–
two CPU sockets P0 LGA 3647
Processor (CPU)
