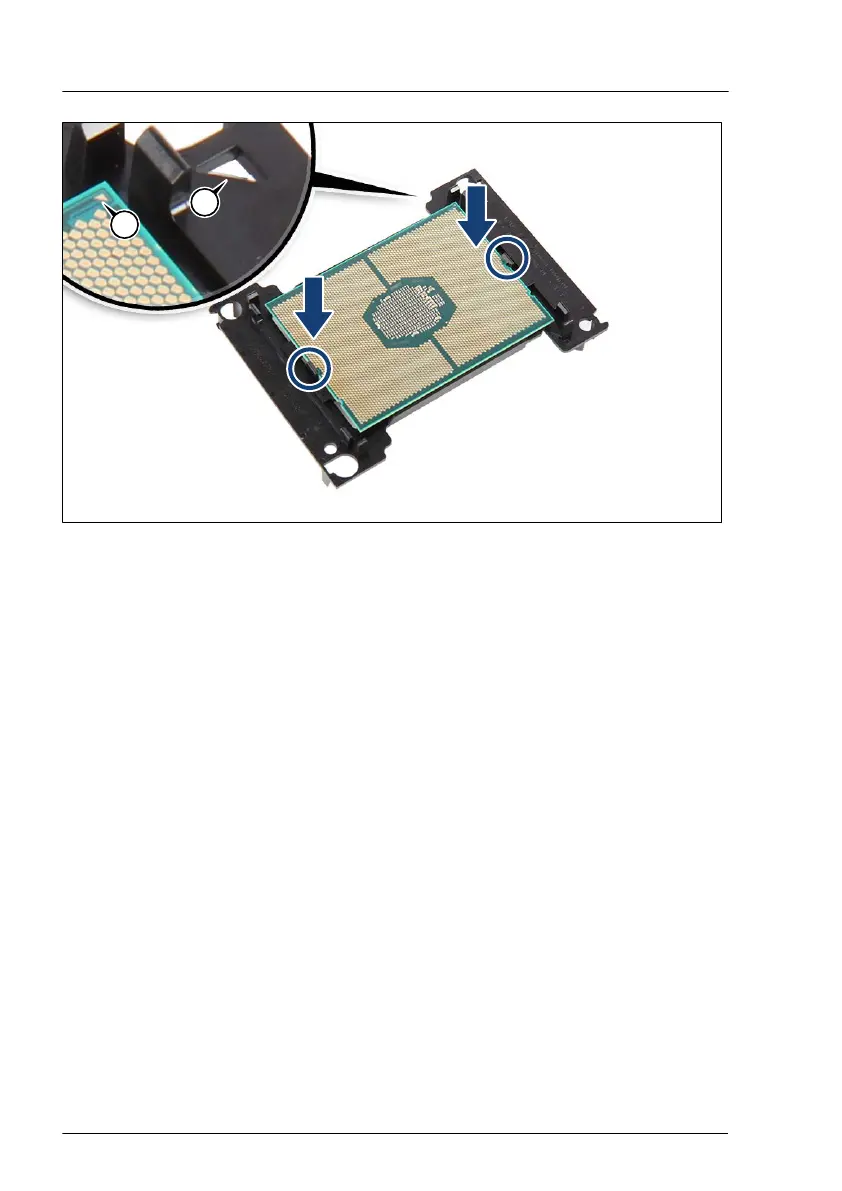

Figure 267: Installing the CPU in the CPU frame
▶
Click the CPU into the CPU frame. Ensure that the triangle marks on CPU
(A) and on CPU frame (B) are on the same edge.
▶
Ensure that the CPU fits in its place.
Processor (CPU)
