Fujitsu PRIMERGY TX2550 M5

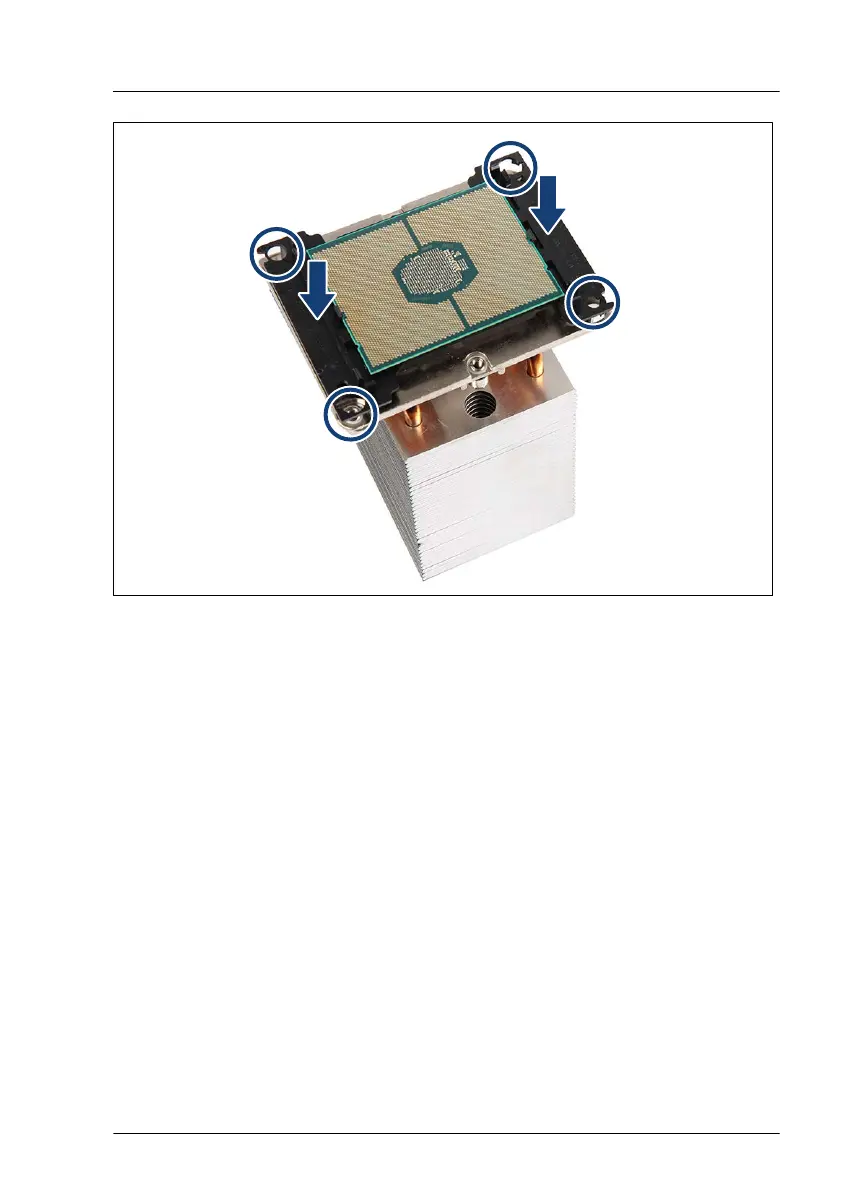

Figure 270: Installing the CPU frame on the heat sink (B)
▶
Press down the CPU frame.
▶
The frame must click into place (see circles).
Processor (CPU)
TX2550 M5 Upgrade and Maintenance Manual 417
