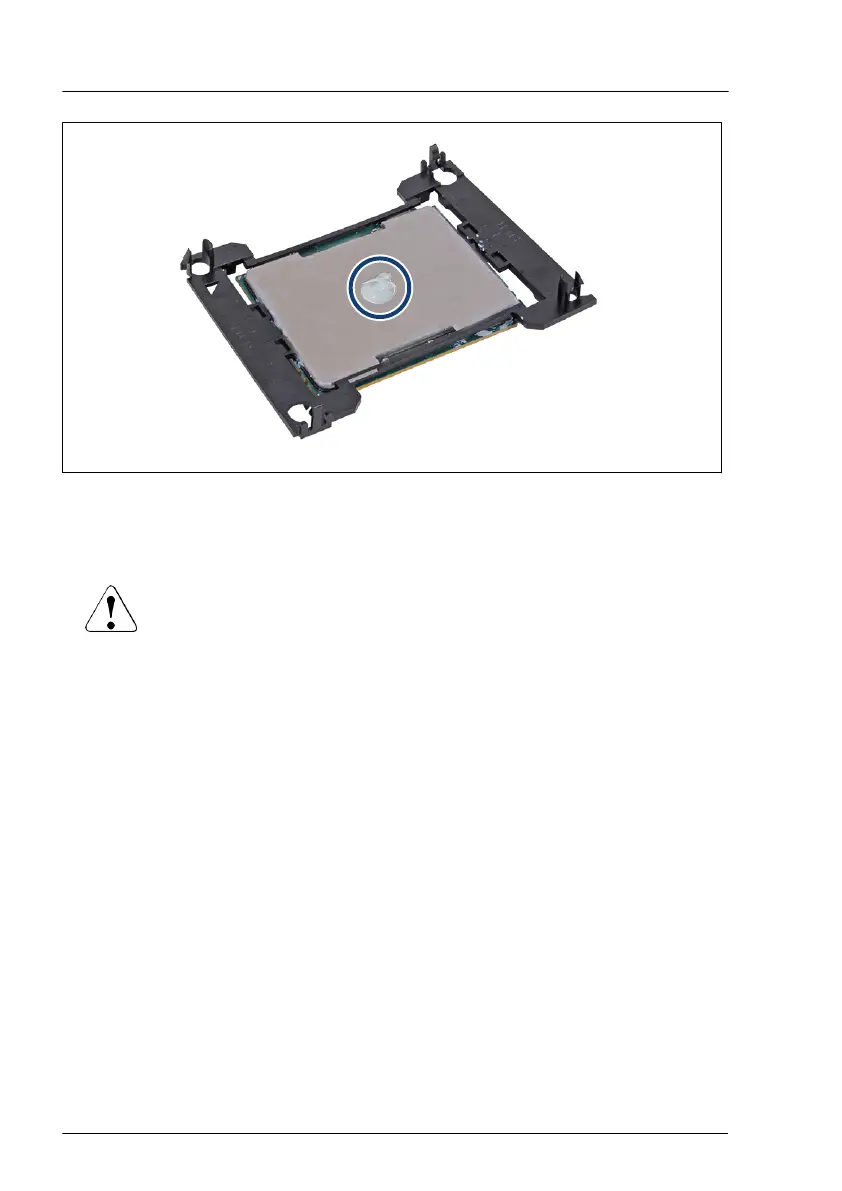

Figure 277: Applying the thermal paste
▶
Apply a small point-shaped amount of thermal paste (1.0 gram, see
description above) to the center of the CPU surface as shown.
CAUTION
▶
Do not mix different types of thermal paste.
Installing the CPU and heat sink
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
If applicable, remove the protective cap from the bottom side of the new
CPU.
▶
Install the CPU and the heat sink, see "Installing the CPU and heat sink" on
page
413
.
Concluding steps
▶
"Installing the system air duct" on page 68.
▶
"Reassembling" on page 68.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
Processor (CPU)
426 Upgrade and Maintenance Manual TX2550 M5
