The front cover only needs to be removed in order to install accessible
drive dummy covers. If the accessible drive is replaced after being
removed, leave the front cover installed.
▶
"Removing the system air duct" on page 67.
▶
"Removing the PCI air duct" on page
88.
▶
If applicable, "Removing the riser module" on page 86.
▶
If applicable, remove the expansion card, see "Removing an expansion
card" on page 358.
▶
Remove the fan bridge, see "Handling the fan bridge" on page 92.
Removing an accessible drive
▶
Remove all cables from the accessible drive.
▶
Disengage the accessible drive locking bar, see "Opening the accessible
drive locking bar" on page 96.

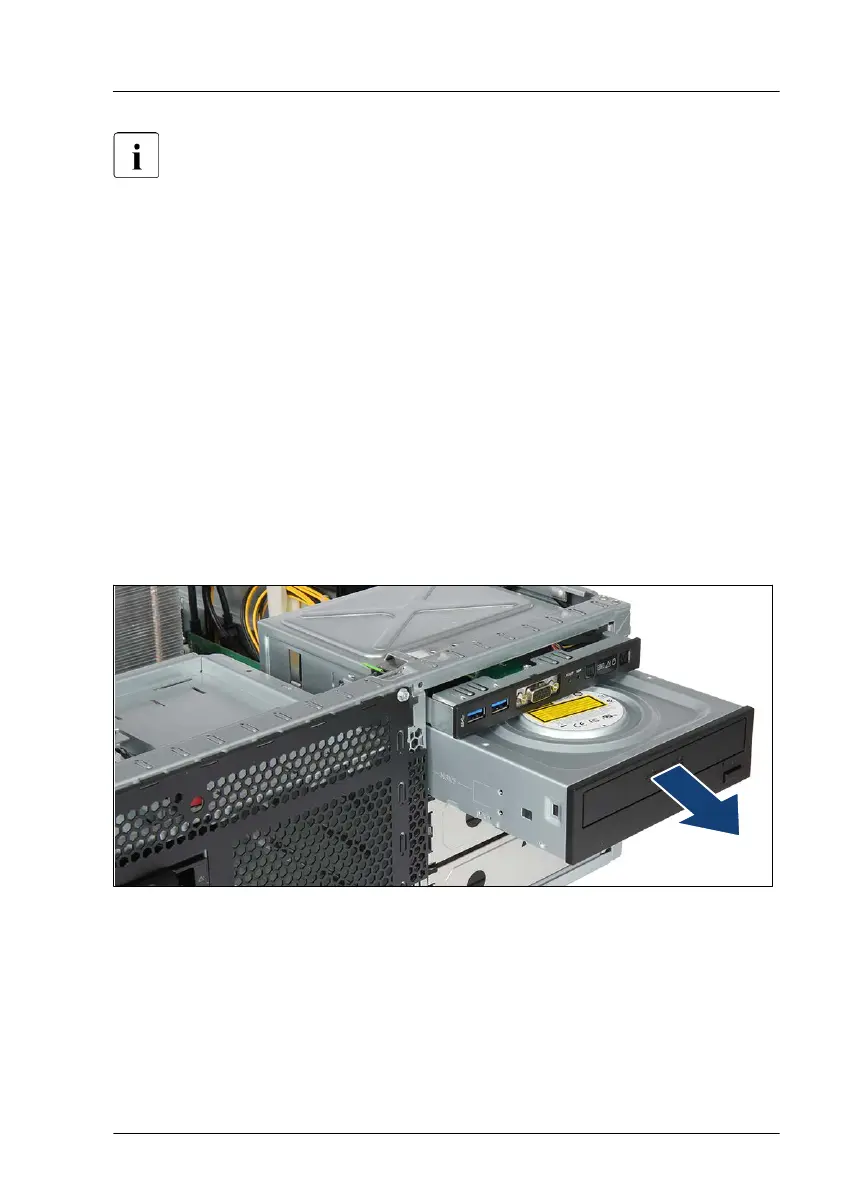

Figure 288: Removing the accessible drive
▶
Carefully pull the accessible drive out of its installation bay
.
▶
Engage the locking bar
, see "Closing the accessible drive locking bar" on
page 98.
Accessible drives
TX2550 M5 Upgrade and Maintenance Manual 441
