Removing front panel cables from the system board

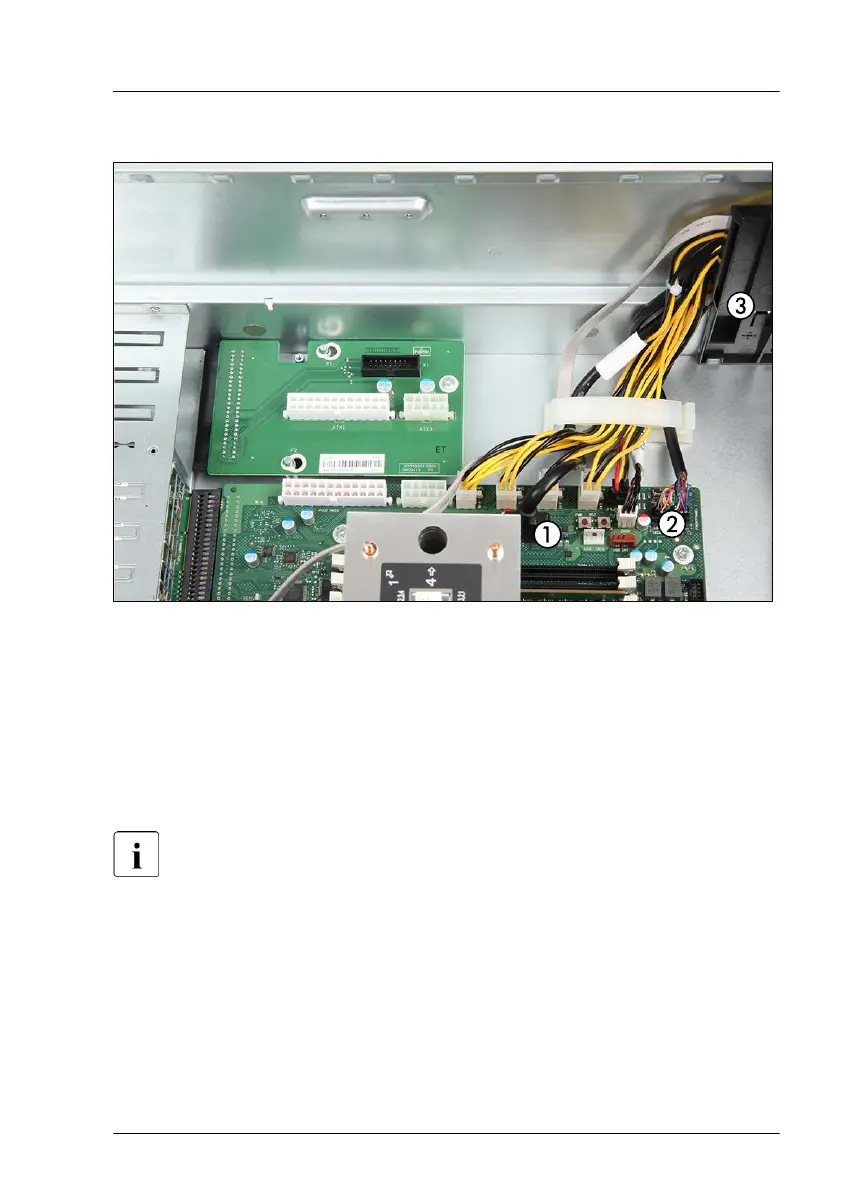

Figure 300: Disconnecting cables from system board
▶
Disconnect the front USB cable from the system board (1).
▶
Disconnect the front panel cable from the system board (2).
▶
Remove all front panel cables from the cable guide (3).
Removing the front panel module
Unlocking and securing the front panel is illustrated by the example of
the rack model. In case of floorstand models, the accessible drive
locking bar is located on the top of the drive bay. For more information,
see
"Opening the accessible drive locking bar" on page 96
