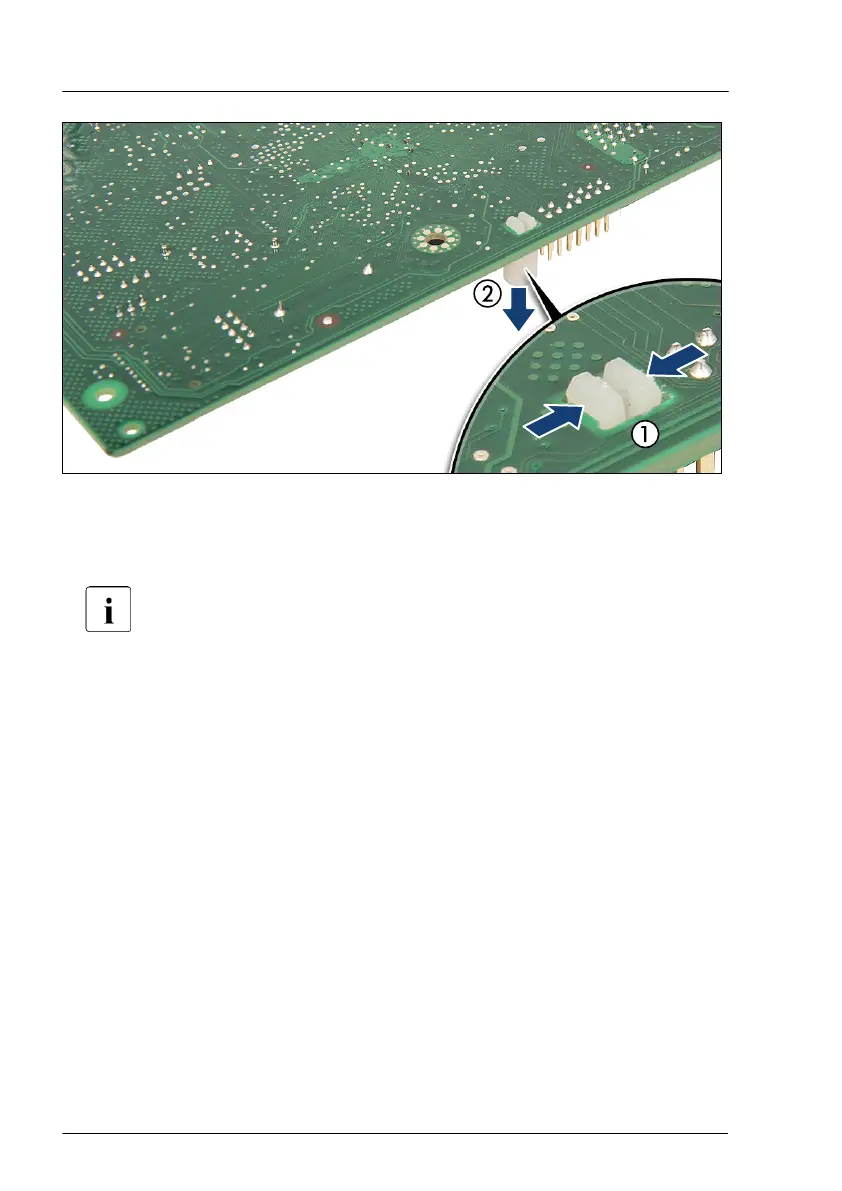

Figure 314: Removing the TPM spacer
Using a flat nose pliers, press together the hooks on the TPM spacer (1, see
close-up) and remove it from the system board (2).
If the TPM is to be replaced, the TPM spacer may remain on the
system board.
Install the system board, see "Installing the new system board" on page 518
.
Concluding steps
Install the fan bridge, see "Handling the fan bridge" on page 92.
"Installing the crossbar" on page 91.
If applicable, install the riser module, see "Installing the riser module" on
page 87.
"Installing the PCI air duct" on page 89.
"Installing the system air duct" on page 68.
"Reassembling" on page 68.
"Connecting the power cord" on page 82.
"Switching on the server" on page 83.
"Resuming BitLocker functionality" on page 130.
System board and components
484 Upgrade and Maintenance Manual TX2550 M5
