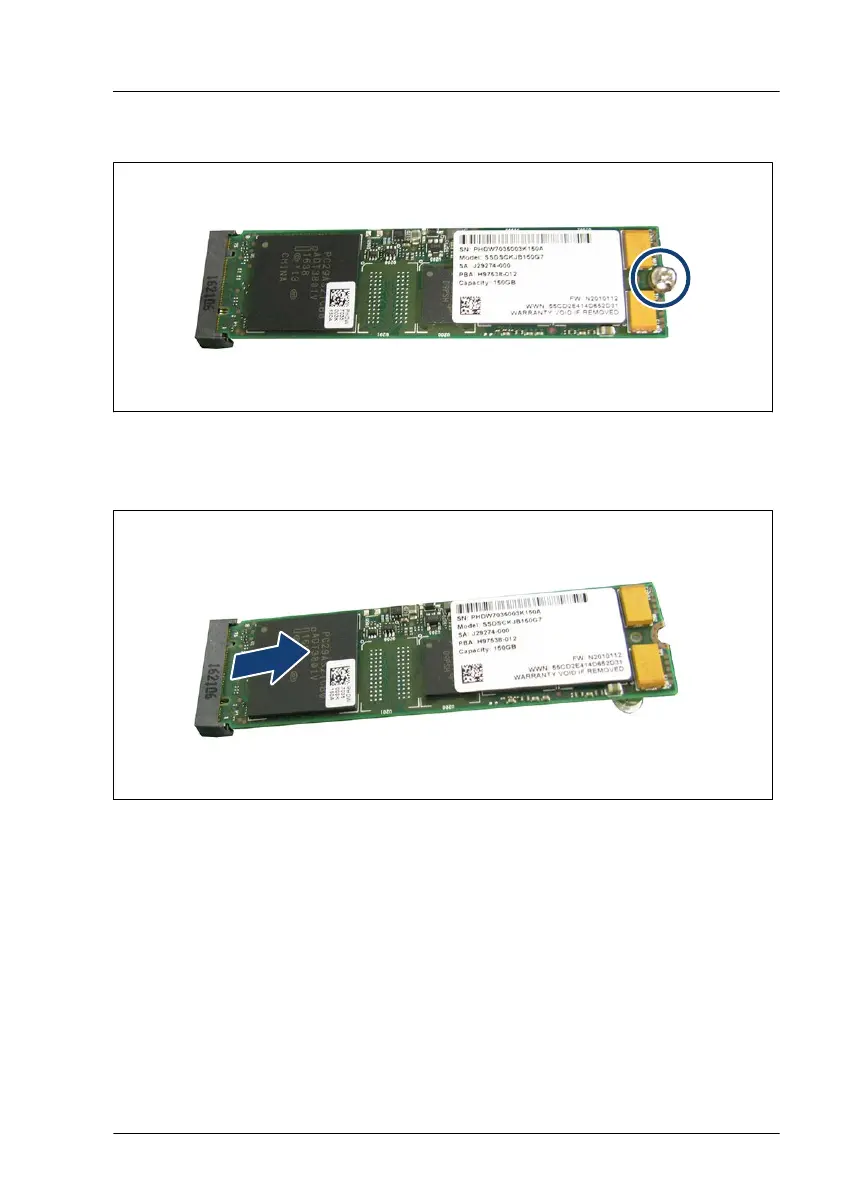

Removing the M.2 SSD
Figure 322: Removing the M.2 SSD (A)
Remove the screw (see circle).
Figure 323: Removing the M.2 SSD (B)
Pull the M.2 SSD out of its slot.
If no new M.2 SSD will be installed:
Fasten the screw to the corresponding hexagon stand-off (see orange
circles in
Figure 319).
System board and components
TX2550 M5 Upgrade and Maintenance Manual 497
