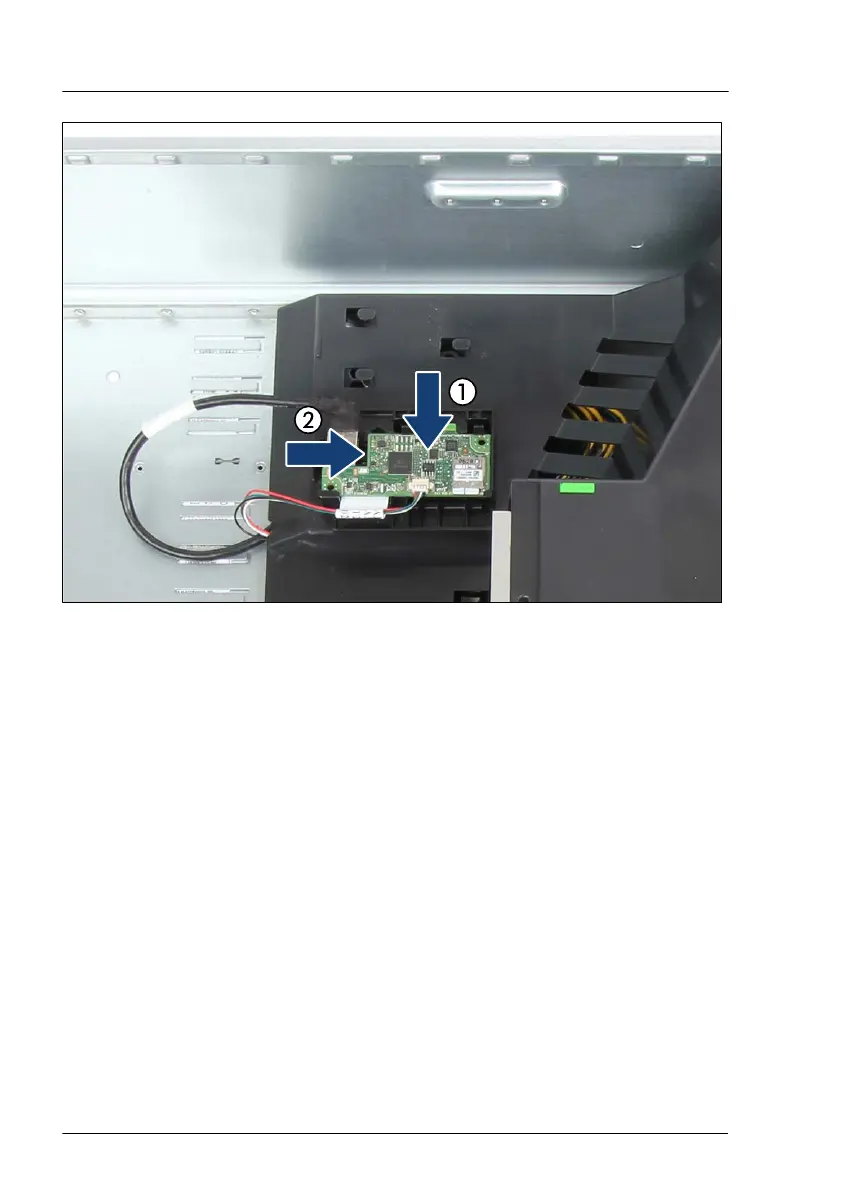

Figure 329: Installing the Dual microSD 64GB Enterprise onto the system air duct
▶
Place the holder on the shoulder screw caps of the system air duct (1).
▶
Push the holder in direction of the arrow until it engages (2).
Concluding steps
▶
"Reassembling" on page
68
.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
Software configuration
In order to install the ESXi to the Dual microSD 64GB Enterprise, the VMware
ESXi installer CD is required. To obtain the ESXi installer CD by purchasing the
OEM Media Kit, or downloading the ESXi Custom Image ISO file from the
VMware website and burn the image to the CD.
https://www.vmware.com/go/download-vsphere
System board and components
504 Upgrade and Maintenance Manual TX2550 M5
