Fujitsu PRIMERGY TX2550 M5

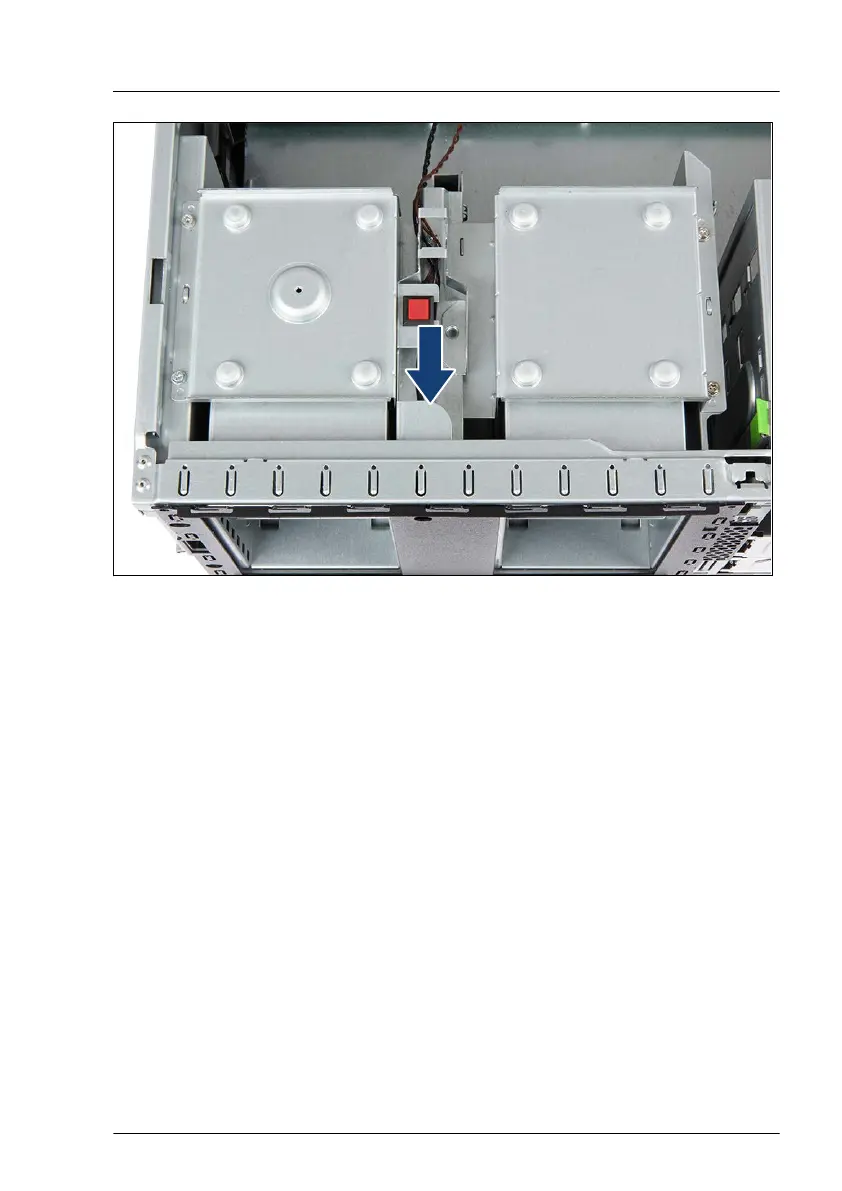

Figure 361: Installing the intrusion switch cable (A)
▶
Place the new intrusion switch holder on the HDD bay top cover as shown.
▶
Slide the intrusion switch holder under the front chassis rim as far as it will
go.
Cables
TX2550 M5 Upgrade and Maintenance Manual 551
