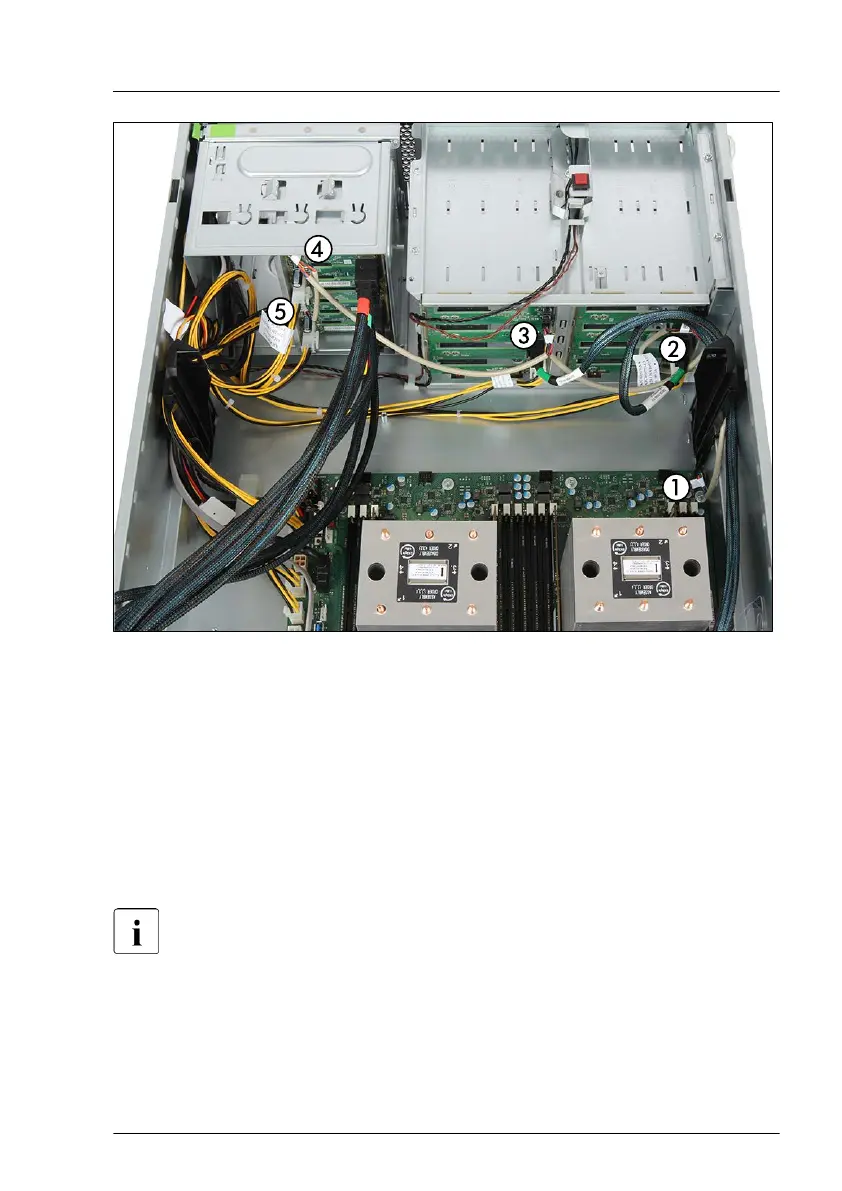

Figure 365: Connecting the OOB cable - example for two HDD backplanes and extension box
▶
Connect the OOB cable depending on your configuration:
1 To the connector "OOB Front" on system board
2 To the connector "X11" on the backplane 1
3 To the connector "X11" on the backplane 2
4 To the connector "X11" on first backplane of the extension box
5 To the connector "X11" on second backplane of the extension box
For the cable plan see "Appendix B" on page 589
.
Concluding steps
▶
Install the fan bridge, see "Handling the fan bridge" on page 92
.
▶
"Installing the system air duct" on page 68.
Cables
