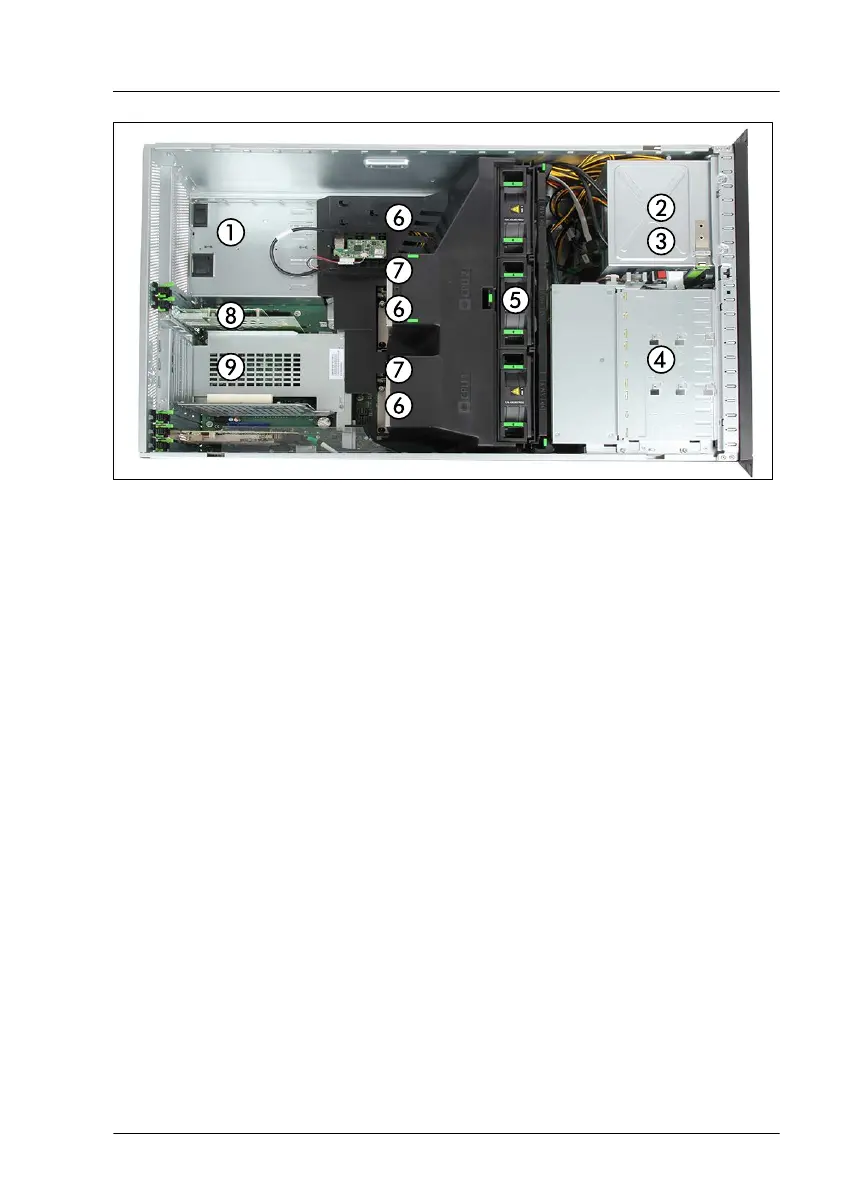

Figure 372: Server interior - example TX2550 M5 floorstand high performance variant
1 Up to 2 PSUs
2 Front panel module / dummy cover
3
ODD (option) / dummy cover
4 HDDs in different configurations
5 Fan bridge
6 Main memory
7 Up to 2 CPUs
8 OCP module (option)
9 Riser module
