6.6 Miscellaneous Printing Functions
99
6
Chapter 6 Printing
This function prints out function status information and channel setting information in list format. The
list settings are the same as for the List function. ( )
Press the PRINT key at a screen other than the Waveform screen.
To stop printing before it has finished:
Press the STOP key.
A text document edited on a PC can be printed together with a waveform.
1. Create a text file using [Notepad] or another suitable application on the PC.
The maximum size of the text comment that can be imported to the 8847 is 104 x 200.
Print width will be adjusted to the widest line.
2. Press the SYSTEM key and set [Text Comment] on the [Printer] sheet.
3. Press the FILE key and use the File screen to import the text file created on the
PC into the 8847.
See: "5.3 Loading Data" ( p.77)
The text file content will be printed along with the waveform when printing.

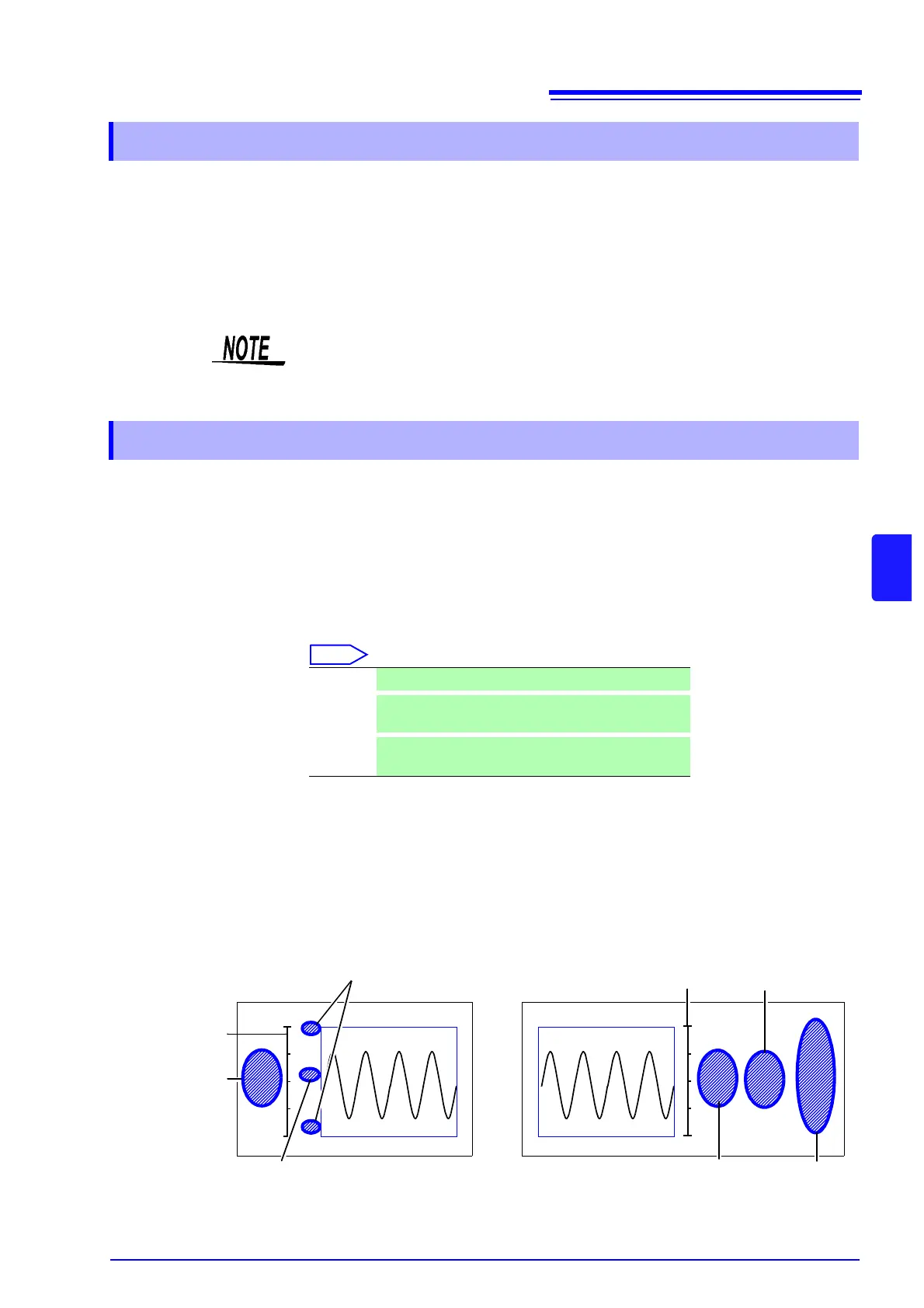

Print Example _ Positioning with regard to other print items
6.6.3 List Print
See: "Print a list of settings" ( p.96)
The printed list contains the setting parameters for the acquired waveform data.
The list content will not change even if the settings were changed after the wave-
form data were acquired.
6.6.4 Text Comment Printing
Off Text comment is not printed. (default setting)
Before
Wave
Text comment is printed before waveform.
After
Wave
Text comment is printed after waveform.
Upper and Lower limit value
Text comment
List
Zero position comment
<Printing before waveform selected>
Numerical calculation results
Text comment
<Printing after waveform selected>
Gauge
Gauge
