8.8 Inverting the Waveform (Invert Function)
138
This applies to the analog channels only. You can invert the plus and minus sides of the waveform.
Example: With a spring or similar, if pulling it towards the observer is taken as the minus
direction and pushing it away from the observer as the plus direction, the output
will be minus (negative) for pulling and plus (positive) for pushing.
8.8 Inverting the Waveform (Invert Function)
Procedure

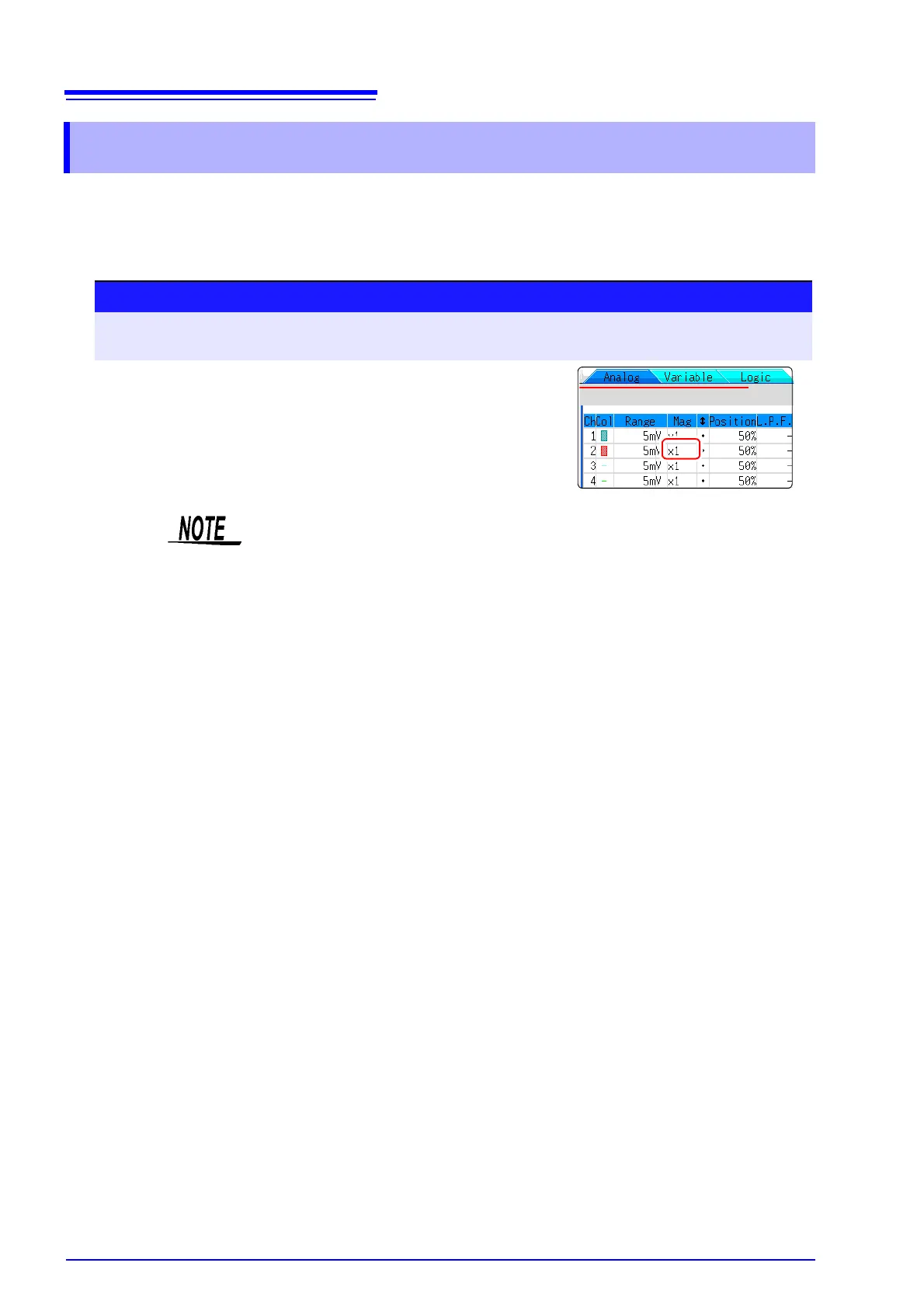

To open the screen: Press the DISP key → Waveform screen → Press the CH.SET key → Channel settings
window ([Analog] sheet)
1
Move the cursor to the [Mag] item for the channel whose
waveform you want to invert.
2
Select [Invert].
The waveform data (print data, saved file data) is adjusted by the Invert function.
