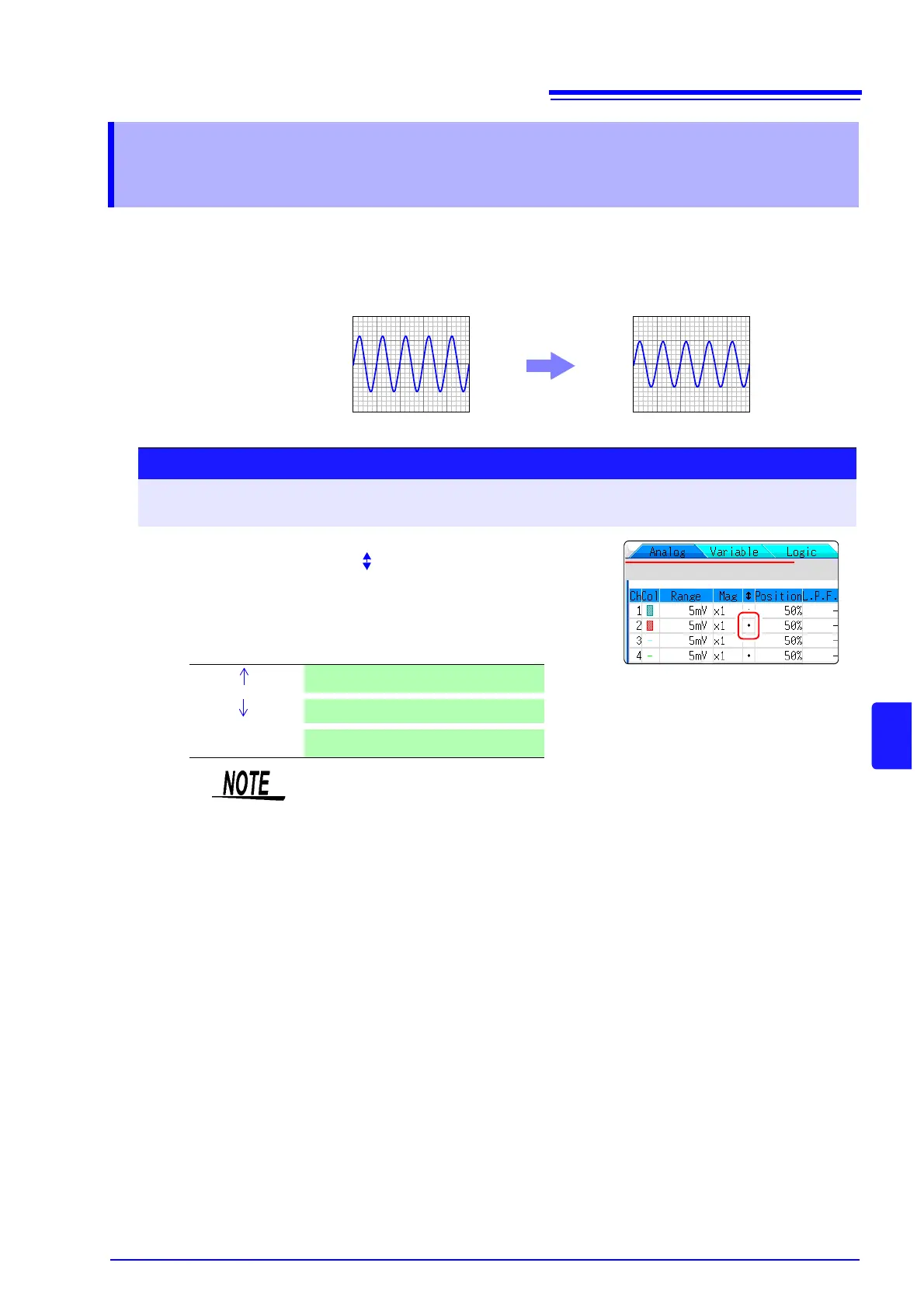

8.7 Fine Adjustment of Input Values (Vernier Function)
137
8
Chapter 8 Utility Functions
Fine adjustment of input voltage can be performed arbitrarily on the Waveform screen. When
recording physical values such as noise, temperature and acceleration using sensors, amplitude
can be adjusted to facilitate calibration.
8.7 Fine Adjustment of Input Values (Vernier
Function)
Normal Display Vernier Function Enabled
1.2 V input is displayed as 1.0 V
1.2 V
1.0 V
Procedure
To open the screen: Press the DISP key → Waveform screen → Press the CH.SET key → Channel settings
window ([Analog] sheet)
1
Move the cursor to the [] vernier setting item of the chan-
nel to adjust.
2
Make the adjustment with the F keys while watching the
waveform.
Vernier Magnify waveform
Vernier
Compress waveform
Vernier Reset
Return waveform to original position
• The adjustment range is 50 - 200% of the original waveform. The magnifica-
tion/compression ratio is not displayed.
• Vernier adjustments cannot be verified on printed waveforms or lists.
• The waveform data (print data, saved file data) is adjusted by the Vernier func-
tion.
